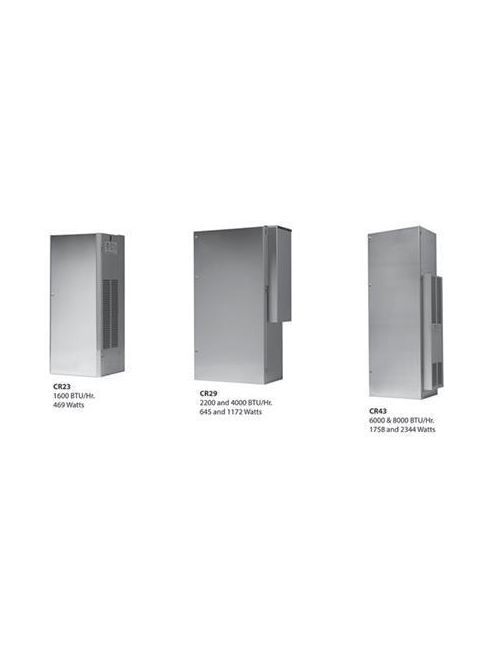

Hoffman CR430816G036 12.7 Amp 2344 W 115 Volt 8000 BTU/HR Galvanized Sheet Metal Cabinet Mount Air Conditioner
Product image thumbnail 0
Product image thumbnail 1
$9,896.42/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CR430816G036
North Coast Part # 600111

Features

  • Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
  • Smooth surface with minimal use of visible fasteners
  • Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
  • R134a or R407c refrigerant
  • Models for 115, 230 and 460 single phase VAC power input
  • Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
  • Reliable mechanical thermostat located behind the filter of the unit
  • Robust reciprocating compressor
  • Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
  • High-performance fans and blowers designed for densely packed enclosures

Specifications

  • Height (H): 1,100 millimetre
  • Nominal Capacity Btu/h: 8,000 British thermal unit per hour
  • Nominal Capacity Watts: 2,344 watt
  • Width (W): 400.05 millimetre
  • Nominal Voltage: 115 volt
  • Number of Phases: 1
  • Voltage AC: 100 - 120 VAC
  • Operating Temperature: -40 degree Celsius
  • Depth (D): 260 millimetre
  • Max Current: 12.7 ampere
  • Protection Rating: NEMA Type 4X
  • Remote Access Control: No
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Width: 400 millimetre
  • Min Temperature: -40 degree Celsius
  • Max Temperature: 55 degree Celsius
  • Weight: 57 kilogram
  • Nominal Btu/h: 8,000 British thermal unit per hour
  • Nominal Watts: 2,344 watt
  • Mechanical Advantage: Stainless steel optional
  • Color: Unpainted
  • Finish: Brushed #3
  • Thickness (T): 1.21 millimetre

Overview

UPC 78351019311
GTiN 00783510193119
Width 15.75 in
Color Gray
Voltage 120 Volt
Type Air Conditioners
Applications Controls and Drives; Corrosive Environments; Hygienic Environments; Power Distribution
Depth 10.25 in
Height 43.31 in
Weight 57 kg
Standard CE,File No. SA6453,Refer To Tables For Specific UL/cUL Type Ratings These Air Conditioners Maintain When Properly Installed On A UL/cUL Rated Enclosure.,UL/cUL Listed
Frequency 50/60 Hz
Wattage 2344 Watt
Family Brand Name Hoffman
BTU Hour 8000 BTU
Max Current 12.7 A
Max Temperature 131 degrees F
Min Temperature -40 degrees F
Sub Brand ProAir
Operating Temperature 131 deg F
Housing Material Stainless Steel
Max Power Current 2344 W
Finish Brushed
Thickness 1.21 Millimetre mm
