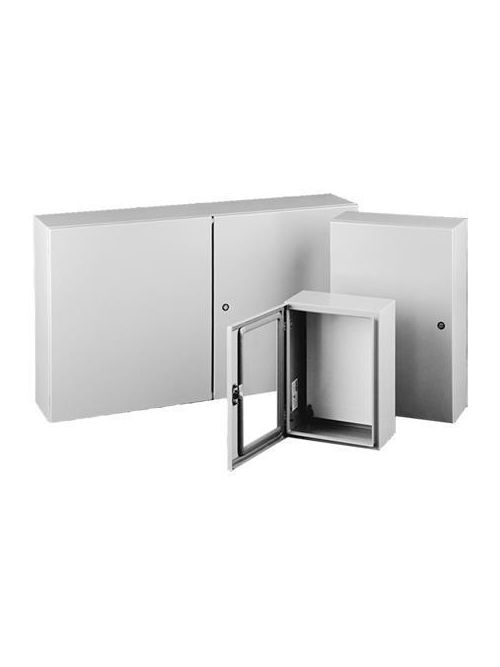

CONCEPT 1DOOR ANSI61
$324.00/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD12106
North Coast Part # 1097590

Features

  • 16 or 14 gauge steel (see table)
  • Seams continuously welded and ground smooth
  • Corner-formed doors
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Minimum-width body flange provides maximum door opening (210┬ádegrees)
  • Door opens 210 degrees
  • External formed body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for optional external wall-mount brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Seamless foam-in-place gasket
  • Quarter-turn slotted latch(es)
  • Door alignment device on doors wider than 30 in.
  • Four hinges on 60in.-high enclosures
  • Grounding stud on body; bonding provision on door
  • Provisions on door for optional high-impact thermoplastic data pocket
  • Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
  • Installation instructions provided
  • Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch

Notes

  • Purchase panels separately.
  • Optional NEMA-size panels require conversion kit Catalog Number CCPM4.
  • Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.

Accessories

  • Door Stop Kit
  • Handles
  • Lock Inserts
  • Concept Panels
  • Mounting-Bracket Kits

Specifications

  • Bulletin Number: CW1
  • Material: Steel
  • Model Code: 29388
  • Interchangeable: False
  • Finish: ANSI 61 Gray
  • Catalog Number: CSD12106
  • A in.: 12
  • B in.: 10
  • C in.: 6
  • Door Ga.: 16
  • Body Ga.: 16
  • CONCEPT Panel: CP1210
  • Conductive CONCEPT Panel: CP1210G
  • Panel Size D x E in.: 10.20 x 8.20
  • Mounting G x H in.: 10.50 x 8.50
  • Latches Qty.: 1
  • Latches style: Quarter-turn
  • J in.: 6.00
  • Standards: UL 508A Listed; Type 4, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997 || NEMA/EEMAC Type 4, 12, 13 || CSA, File No. 42186: Type 4, 12 || VDE IP66 || IEC 60529, IP66

Overview

UPC 78351029388
GTiN 00783510293888
Finish ANSI 61 Gray
Width 10 in
Color Gray
Material Steel
Depth 6 in
Height 12 in
Standard VDE IP66,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,CSA, File No. 42186: Type 4, 12,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997
Family Brand Name Hoffman
Latches Style Quarter-turn
Door Gauge 16
Body Gauge 16
Number of Latches 1
Size 12.00x10.00x6.00 in
Type Wall-Mount, Mild Steel
Applications Controls and Drives
Sub Brand Concept
