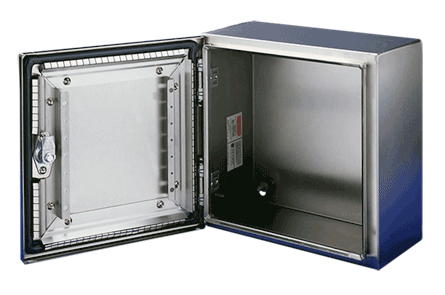

Hoffman CSD12126EMCSS 12 x 12 x 6 Inch 18 Gauge 304 Stainless Steel NEMA 4X Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,668.18/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD12126EMCSS
North Coast Part # 601648

Features

  • Seams continuously welded and ground smooth
  • Minimum-width body flange provides maximum body opening
  • External formed 90-degree body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Stainless steel hidden hinges
  • Easy-to-remove clip-style hinge pins
  • Removable corner formed door
  • Seamless foam-in-place gasket adjacent to spring finger EMC gasket
  • Quarter-turn latches with flush slotted insert

Specifications

  • Height (H) (inch): 12
  • Height (H) (millimetre): 305
  • Width (W) (inch): 12
  • Width (W) (millimetre): 305
  • Depth (D) (inch): 6
  • Depth (D) (millimetre): 152
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel Size (D x E) (inch): 10.20 x 10.20
  • Panel Size (D x E) (millimetre): 259 x 259
  • Conductive Panel: CP1212G
  • Mounting (G x H) (inch): 10.50 x 10.50
  • Mounting (G x H) (millimetre): 267 x 267
  • Panel: CP1212
  • Latch Quantity: 1
  • Modification Services: Yes
  • Type Number: Type 4X
  • IP Rating: IP66
  • Body Thickness (gauge): 18
  • Body Thickness (millimetre): 1.27
  • Color: Unpainted
  • Door Thickness (gauge): 16
  • Door Thickness (millimetre): 1.59
  • Finish: Brushed #4
  • Sub Brand: Concept
  • Size: 12.00x12.00x6.00 in

Related Products

Accessory

  • CP1212G
  • CP1212
  • CMFKSS
  • CMC12
  • CPMK12
  • ADSTOPKSS6
  • ADP1
  • APWK53NFNM
  • APWK53NFSS
  • CWHNL
  • CSP1212
  • CSPBADB
  • CSPB1212
  • GP126SS6
  • CCPM4
  • CAM64
  • CDR3P12
  • GHPINSS
  • AHCI238S
  • AHCI5E
  • AHCI1DV
  • AS050SS

Overview

UPC 78351025939
Item Long Description Use Concept EMC Enclosures with their convenient quarter-turn latches in corrosive indoor or outdoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.
GTiN 00783510259396
Finish Brushed
Width 12 in
Size 12.00x12.00x6.00 in
Type CONCEPT EMC,Type 4X
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments
Depth 152 mm
Height 12 in
Standard CSA File No. 42186: Type 4, 4X, 12,CUL Listed Per CSA C22.2 No 94; Type 4, 4X, 12; File No. E61997,IEC 60529, IP66,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 4, 4X, 12, 13,UL 508A Listed; Type 4, 4X, 12; File No. E61997,VDE IP66
Family Brand Name Hoffman
Door Gauge 16
Body Gauge 18
Number of Latches 1
Sub Brand Concept
Body Thickness 1.27 mm
