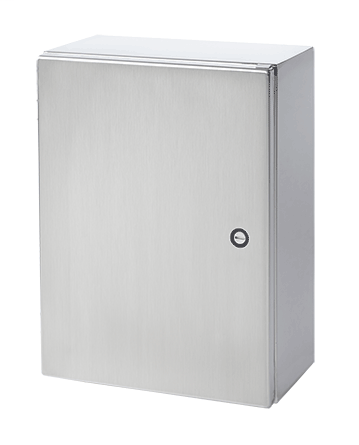

Hoffman CSD12126SS6 12 x 12 x 6 Inch 16 Gauge 316L Stainless Steel NEMA 4X 1-Door Wall Mount Enclosure

Features

• Manufactured from Type 304 or Type 316L stainless steel
• Minimum-width body flange provides maximum body opening
• External formed 90-degree body flange
• Panel mounting studs fit optional Concept panels and other accessories
• Mounting holes in back of body for direct mounting or for optional external mounting brackets
• Type 316 stainless steel hidden hinges promote clean aesthetic appearance
• Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
• Provision on door (except when B = 12 in.) for thermoplastic data pocket
• Provision on door (except when B = 12 in.) for optional doorstop kit
• Quarter-turn latches furnished with flush slotted insert
• Seamless foam-in-place gasket
• Self-grounding latch system with double seal
• Bonding provision on door; grounding stud on body
• Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting hole
• Installation instructions

Notes

• Catalog numbers ending in 6 are Type 316L stainless steel.
• Purchase panels separately. Optional stainless steel, composite and aluminum panels are also available for most sizes.
• Optional NEMA style steel and stainless steel panels require conversion kit catalog number CCPM4.

Accessories

• Type 316 Stainless Steel Door Stop Kit
• Concept Panels
• H2Omit Vent Drains, Type 4X
• H2Omit Thermoelectric Dehumidifier
• Handles
• Lock Inserts

Specifications

• Bulletin Number: CWS
• Finish: Brushed
• Material: Stainless Steel
• Model Code: 49990
• Ship Wt. Std. Pkg. (lbs): 14.0
• Interchangeable: FALSE
• Catalog Number: CSD12126SS6
• A in.: 12
• B in.: 12
• C in.: 6
• Style: Quarter-turn
• Panel Size D x E in.: 10.20 x 10.20
• J in.: 6
• Conductive Panel: CP1212G
• Mounting G x H in.: 10.50 x 10.50
• Panel: CP1212
• Body Gauge: 16
• Door Gauge: 16
• Latches Qty.: 1
• Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3R, 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12 || VDE IP66 || IEC 60529, IP66 ||
