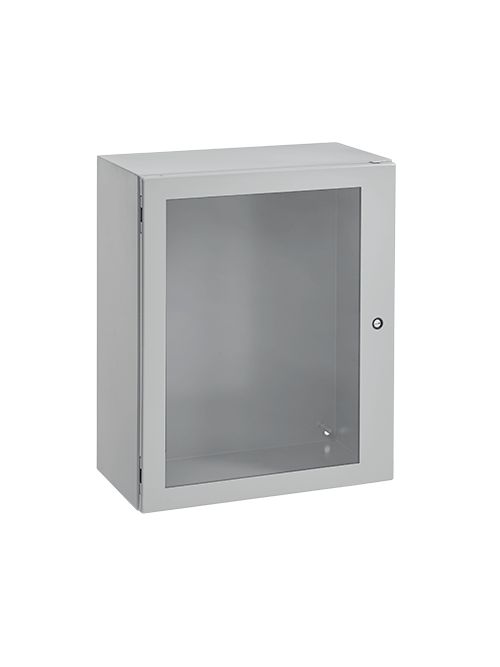

Hoffman CSD161210W 16 x 12 x 10 Inch Gray 18 Gauge Steel NEMA 4/12 1-Door Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD161210W
North Coast Part # 664371


  • 16 or 14 gauge steel (see table)
  • Seams continuously welded and ground smooth
  • Corner-formed doors
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Minimum-width body flange provides maximum door opening (210┬ádegrees)
  • Door opens 210 degrees
  • External formed body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for optional external wall-mount brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Seamless foam-in-place gasket
  • Quarter-turn slotted latch(es)
  • Grounding stud on body
  • Provisions on door for optional high-impact thermoplastic data pocket
  • Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
  • Installation instructions provided
  • Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
  • Clear polycarbonate window flush with door surface


  • Purchase panels separately.
  • Optional NEMA-size panels require conversion kit Catalog Number CCPM4.
  • Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.


  • Door Stop Kit
  • Handles
  • Lock Inserts
  • Concept Panels
  • Mounting-Bracket Kits


  • Bulletin Number: CW1
  • Material: Steel
  • Model Code: 37739
  • Ship Wt. Std. Pkg. (lbs): 22.5
  • Interchangeable: False
  • Catalog Number: CSD161210W
  • A in.: 16
  • B in.: 12
  • C in.: 10
  • Panel Size D x E in.: 14.20 x 10.20
  • Window Size M x N in.: 12.49 x 7.30
  • J in.: 8.00
  • Mounting G x H in.: 14.50 x 10.50
  • CONCEPT Panel: CP1612
  • Door Ga.: 14
  • Body Ga.: 16
  • Conductive CONCEPT Panel: CP1612G
  • Latches Qty.: 1
  • Standards: UL 508A Listed; Type 4, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997 || NEMA/EEMAC Type 4, 12, 13 || CSA, File No. 42186: Type 4, 12 || VDE IP66 || IEC 60529, IP66


UPC 78351037739
GTiN 00783510377397
Finish Powder Coated
Width 12 in
Color Gray
Type Single Door, Single Lock
Material Steel
Applications For Machine Control Applications
Mounting Type Wall
Depth 10 in
Height 16 in
Standard CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
Family Brand Name Hoffman
Gauge 16 or 14
Door Gauge 14
Body Gauge 16
Number of Latches 1
Cover Type Quarter Turn Latch
Sub Brand Concept
Size 16.00x12.00x10.00 in
