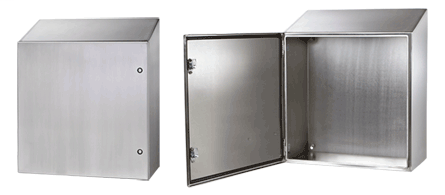

NVENT HOF CSD20168SSST 304SS TYPE 4
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2,166.75/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD20168SSST
North Coast Part # 1099360

Features

  • 20 degree sloped top prevents pooling of liquids and accumulation of other debris
  • Minimum-width body flange provides maximum body opening
  • External formed 90-degree body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Type 304 stainless steel hidden hinges promote clean aesthetic appearance (two hinges on models under 36 in. in height; three hinges for models 36 in. and taller)
  • Corner-formed doors are interchangeable and easily removed by pulling clip-style hinge pins
  • Provision on door for thermoplastic data pocket
  • Provision on door for optional door stop kit
  • Seams continuously welded and ground smooth

Specifications

  • Height (H) (inch): 20
  • Height (H) (millimetre): 508
  • Width (W) (inch): 16
  • Width (W) (millimetre): 406
  • Depth (D) (inch): 8
  • Depth (D) (millimetre): 203
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel: CP2016
  • Conductive Panel: CP2016G
  • Panel Size (D x E) (inch): 18.20 x 14.20
  • Panel Size (D x E) (millimetre): 462 x 361
  • Mounting (H x G) (inch): 18.50 x 14.50
  • Mounting (H x G) (millimetre): 470 x 368
  • Latch Quantity: 1
  • Modification Services: Yes
  • Body Thickness (gauge): 16
  • Body Thickness (millimetre): 1.59
  • Color: Unpainted
  • Door Thickness (gauge): 16
  • Door Thickness (millimetre): 1.59
  • Finish: Brushed #4
  • IP Rating: IP66
  • Sub Brand: Concept
  • Size: 20.000 x16.000 x8.0000 in

Related Products

Accessory

  • AS050SS
  • SH05SS04001
  • CP2016G
  • CP2016
  • CMC16
  • CMFKSS
  • CMTGFT
  • CMC20
  • CPMK16
  • ADP1
  • ADSTOPKSS6
  • ADSTOPK
  • APWK95NFNM
  • APWK53NFSS
  • APWK95NFSS
  • APWK138NFNM
  • APWK116NFNM
  • APWK138NFSS
  • APWK53NFNM
  • APWK711NFSS
  • CLKSLOT
  • CLKDBM3
  • CLKSM7
  • CLKTM7
  • CDR3P16
  • CWHK
  • CWHPTO
  • CDR3P20
  • GHPINSS
  • CWHNL
  • CSP2016
  • CSPBADB
  • CSPB2016
  • CAM82
  • CAM84
  • GP168SS6
  • CCPM4
  • LEDA1S35
  • LEDA2M35

Overview

UPC 78351026006
Item Long Description For indoor or outdoor applications that require a sloped top and corrosion protection from chemicals and water. Concept Enclosures feature streamlined styling with an attractive stroked finish and flush, stainless steel quarter-turn latches for secure closure.
GTiN 00783510260064
Width 16 in
Size 20.000 x16.000 x8.0000 in
Type Sloped Top
Material 304 Stainless Steel
Applications For Indoor and Outdoor Use
Depth 8 in
Height 20 in
Standard 12,13,4,4X,CSA File No. 42186: Typ,CUL Listed Per CSA C22.2 No 94,File No. E61997,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
Family Brand Name Hoffman
Door Gauge 16
Body Gauge 16
Sub Brand Concept
Finish Brushed
Mounting Type Wall
Gauge 16
Cover Type Hinged with Quarter Turn Latch
Body Thickness 1.59 mm
