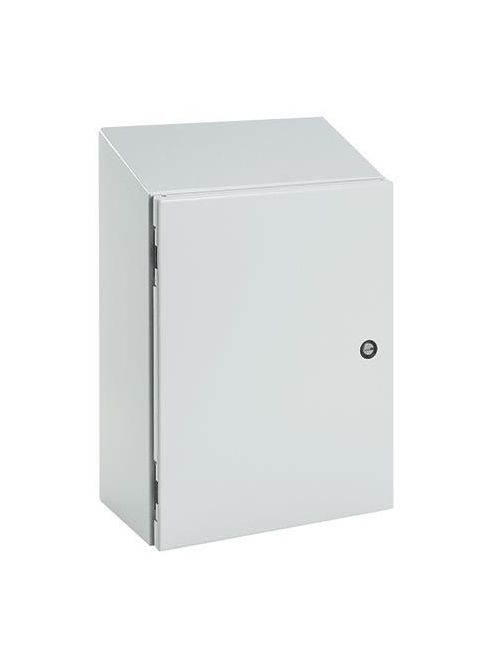

Hoffman CSD20168ST 20 x 16 x 8 Inch Light Gray 16 Gauge Steel NEMA 4 Sloped Top Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$739.13/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD20168ST
North Coast Part # 757605

Features

  • Bonding provision on door and body
  • Panel-mounting studs fit optional Concept panels and other accessories
  • Corner-formed door
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Illustrated instruction sheet
  • External formed body flange channels away liquids
  • Door opens 210 degrees
  • Seamless foam-in-place gasket
  • Quarter-turn latches

Specifications

  • Height (H) (inch): 20
  • Finish: Powder Coated
  • Height (H) (millimetre): 508
  • Width (W) (inch): 16
  • Color: Light Gray
  • Width (W) (millimetre): 406
  • Depth (D) (inch): 8
  • Depth (D) (millimetre): 203
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 4 Watertight
  • Panel: CP2016
  • Conductive Panel: CP2016G
  • Panel Size (D) (inch): 18.2
  • Panel Size (D) (millimetre): 462
  • Panel Size (E) (inch): 14.2
  • Panel Size (E) (millimetre): 361
  • Mounting (G x H) (inch): 21.33 x 14.50
  • Mounting (G x H) (millimetre): 542 x 368
  • Latch Quantity: 1
  • Latch Style: Quarter-turn
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Body Thickness (gauge): 16
  • Body Thickness (millimetre): 1.52
  • Color Code: RAL 7035
  • Door Thickness (gauge): 16
  • Door Thickness (millimetre): 1.52
  • Sub Brand: Concept
  • Size: 20.00x16.00x8.00 in

Related Products

Accessory

  • CP2016
  • CP2016G
  • CMTGFT
  • CMFK
  • CMC20
  • CMC16
  • CPMK16
  • ADSTOPK
  • ADP1
  • CLKTM7
  • CLKSLOT
  • CLKSM7
  • CLKDBM3
  • CWHK
  • CWHPTO
  • CWHNL
  • CSP2016
  • CSPBADB
  • CSPB2016
  • AS1032
  • AN1032
  • GHPINMS
  • CCPM4
  • CAM84
  • CAM82
  • CDR3P16
  • CDR3P20
  • LEDA2M35
  • LEDA1S35
  • GP168

Categories

Overview

UPC 78351014456
Item Long Description Concept Sloped Top Enclosures support Lean factory principles and are ideal when the miniaturization of controls calls for smaller control cabinets or for applications requiring the mounting of controls at an ergonomic height when attached to equipment.
GTiN 00783510144562
Finish Powder Coated
Width 16 in
Size 20.00x16.00x8.00 in
Color Gray
Type Wall-Mount, Mild Steel
Material Steel
Applications Arc Flash Safety; Controls and Drives
Depth 203 mm
Height 20 in
Standard CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
Family Brand Name Hoffman
Door Gauge 16
Body Gauge 16
Sub Brand Concept
Body Thickness 1.52 mm
