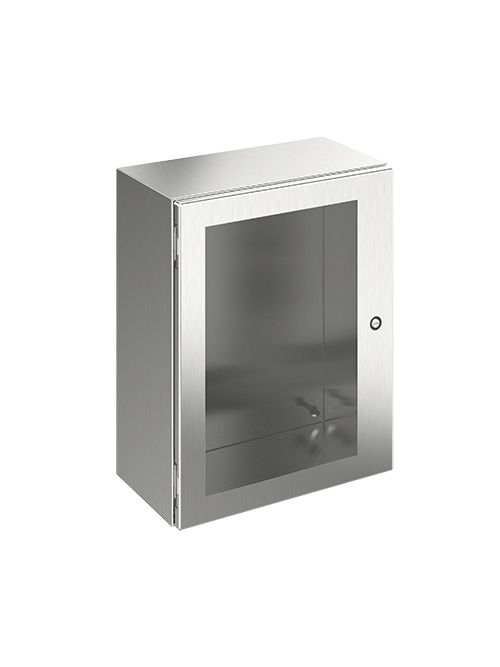

Hoffman CSD202010WSS Type 4X Wall Mount Window Enclosure
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD202010WSS
North Coast Part # 667614


  • Window pre-mounted in door of enclosure.
  • Minimum-width body flange provides maximum body opening
  • External formed 90-degree body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Type 316 stainless steel hidden hinges promote clean aesthetic appearance
  • Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
  • Quarter-turn latches furnished with flush slotted insert
  • Seamless foam-in-place gasket
  • Self-grounding latch system with double seal


  • Height (H): 508 millimetre
  • Width (W): 508 millimetre
  • Depth (D): 254 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Window Size (M x N): 16.74 x 15.10 inch
  • Panel: CP2020
  • Panel Size (D x E): 462 x 462 millimetre
  • Mounting (G x H): 470 x 470 millimetre
  • Latch Quantity: 1
  • Style: Quarter-turn
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Body Thickness: 1.59 millimetre
  • Color: Unpainted
  • Door Thickness: 1.59 millimetre
  • Finish: Brushed #4

Related Products


  • SH09SS04001
  • CP2020G
  • CP2020
  • CMC20
  • CPMK20
  • CLKSM7
  • CLKTM7
  • CWHK
  • CSP2020
  • CSPB2020
  • CCPM4
  • CAM102
  • CAM104
  • CDR3P20
  • LEDA1S35
  • LEDA2M35
  • LEDD1S35
  • LED24V15
  • AVDR4SS4
  • AHCI10E
  • AHCI5E
  • AS050SS


UPC 78351012883
GTiN 00783510128838
Finish Brushed
Width 20 in
Size 20.00x20.00x10.00 in
Type Wall-Mount, Stainless Steel
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments
Depth 10 in
Height 20 in
Standard 12,13,4,4X,CSA File No. 42186: Typ,CUL Listed Per CSA C22.2 No 94,File No. E61997,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
Family Brand Name Hoffman
Door Gauge 16
Body Gauge 16
Number of Latches 1
Sub Brand Concept
Style Quarter-turn
