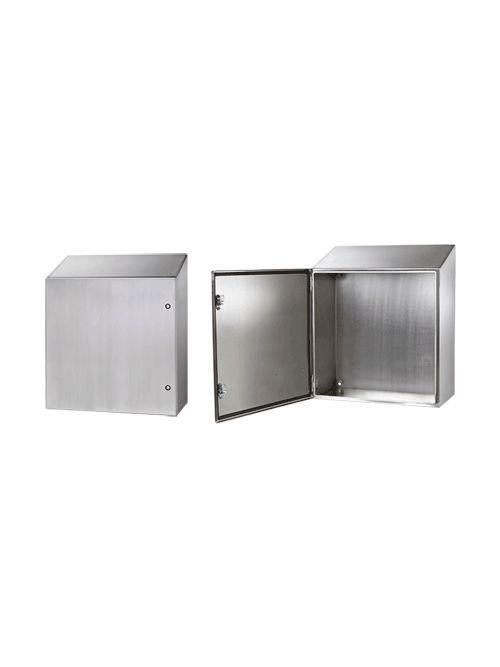

HOFF-E CSD24208SSST 304SS TYPE 4X W
$2,150.38/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD24208SSST
North Coast Part # 1005609

Features

  • Manufactured from 16 and 14 gauge Type 304 stainless steel
  • 20 degree sloped top prevents pooling of liquids and accumulation of other debris
  • Minimum-width body flange provides maximum body opening
  • External formed 90-degree body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Type 304 stainless steel hidden hinges promote clean aesthetic appearance (two hinges on models under 36 in. in height; three hinges for models 36 in. and taller)
  • Corner-formed doors are interchangeable and easily removed by pulling clip-style hinge pins
  • Provision on door for thermoplastic data pocket
  • Provision on door for optional door stop kit
  • Seams continuously welded and ground smooth
  • Stainless steel quarter-turn latches furnished with flush slotted insert
  • Seamless foam-in-place gasket
  • Self-grounding latch system with double seal
  • Bonding provision on door; grounding stud on body
  • Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting holes
  • Installation instructions

Notes

  • Purchase panels separately.

Accessories

  • Panels
  • Type 316 Stainless Steel Door Stop Kit
  • Concept Panels
  • H2Omit Vent Drains, Type 4X
  • H2Omit Thermoelectric Dehumidifier
  • Handles
  • Lock Inserts

Specifications

  • Bulletin Number: CWS2
  • Material: Stainless Steel
  • Model Code: 26011
  • Ship Wt. Std. Pkg. (lbs): 38.0
  • Interchangeable: FALSE
  • Catalog Number: CSD24208SSST
  • A in.: 24
  • B in.: 20
  • C in.: 8
  • Panel Size D x E in.: 22.20 x 18.20
  • Conductive Panel: CP2420G
  • A2 in.: 26.88
  • Body Gauge: 16
  • Panel: CP2420
  • Door Gauge: 16
  • Latch Qty.: 1
  • Mounting H x G in.: 22.50 x 18.50
  • Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3R, 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12 || VDE IP66 || IEC 60529, IP66 ||

Overview

UPC 78351026011
GTiN 00783510260118
Width 20 in
Size 24.000 x20.000 x8.0000 in
Type CONCEPT Sloped Top, Type 4X
Material Stainless Steel
Applications For indoor or outdoor applications that require a sloped top and corrosion protection from chemicals and water. CONCEPT Enclosures feature streamlined styling with an attractive stroked finish and flush, stainless steel quarter-turn latches for secure closure.
Depth 8 in
Height 24 in
Standard 12,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 3R,4,Type 3R,UL 508A Listed,CSA File No. 42186: Typ,CUL Listed Per CSA C22.2 No 94,13,File No. E61997,4X
Family Brand Name Hoffman
Door Gauge 16
Body Gauge 16
Sub Brand CONCEPT
