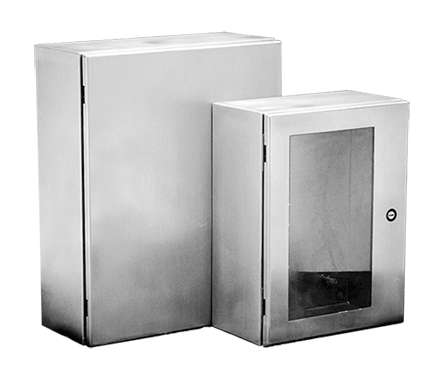

Hoffman CSD242410WSS 24 x 24 x 10 Inch 16 Gauge 304 Stainless Steel NEMA 4X 1-Door Wall Mount Enclosure
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD242410WSS
North Coast Part # 606584


  • Manufactured from Type 304 or Type 316L stainless steel
  • Minimum-width body flange provides maximum body opening
  • External formed 90-degree body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Type 316 stainless steel hidden hinges promote clean aesthetic appearance
  • Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
  • Quarter-turn latches furnished with flush slotted insert
  • Seamless foam-in-place gasket
  • Self-grounding latch system with double seal
  • Bonding provision on door; grounding stud on body
  • Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting hole
  • Installation instructions
  • Clear polycarbonate window


  • Catalog numbers ending in 6 are Type 316L stainless steel.
  • Purchase panels separately. Optional stainless steel, composite and aluminum panels are also available for most sizes.
  • Optional NEMA style steel and stainless steel panels require conversion kit catalog number CCPM4.


  • Type 316 Stainless Steel Door Stop Kit
  • Concept Panels
  • H2Omit Vent Drains, Type 4X
  • H2Omit Thermoelectric Dehumidifier
  • Handles
  • Lock Inserts


  • Bulletin Number: CWS
  • Finish: Brushed
  • Material: Stainless Steel
  • Model Code: 12885
  • Ship Wt. Std. Pkg. (lbs): 43.32
  • Interchangeable: FALSE
  • Catalog Number: CSD242410WSS
  • A in.: 24
  • B in.: 24
  • C in.: 10
  • Style: Quarter-turn
  • Panel Size D x E in.: 22.20 x 22.20
  • Window Size M x N in.: 20.74 x 17.68
  • J in.: 5
  • Mounting G x H in.: 22.50 x 22.50
  • Panel: CP2424
  • Body Gauge: 16
  • Door Gauge: 14
  • Latches Qty.: 2
  • Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File No. E61997 || NEMA/EEMAC Type 3R, 4, 4X, 12, 13 || CSA File No. 42186: Type 4, 4X, 12 || VDE IP66 || IEC 60529, IP66 ||


UPC 78351012885
GTiN 00783510128852
Finish Brushed
Width 24 in
Size 24.00x24.00x10.00 in
Type Wall-Mount, Stainless Steel
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments
Depth 10 in
Height 24 in
Standard 12,13,4,4X,CSA File No. 42186: Typ,CUL Listed Per CSA C22.2 No 94,File No. E61997,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
Family Brand Name Hoffman
Door Gauge 14
Body Gauge 16
Number of Latches 2
Sub Brand Concept
