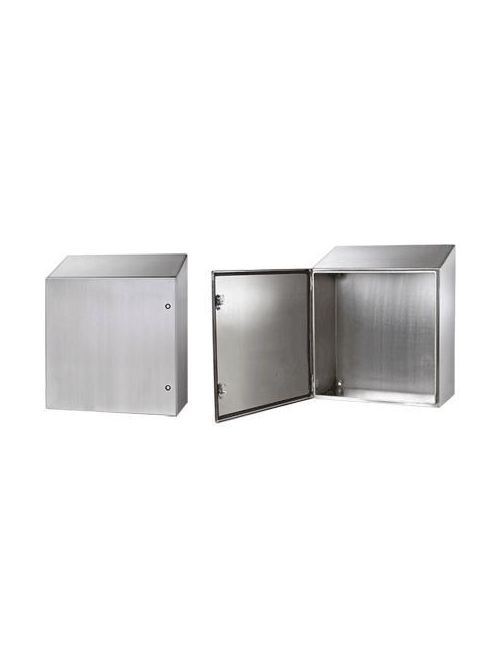

NVENT HOF CSD242412SSST 304SS TYPE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3,434.06/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD242412SSST
North Coast Part # 879949

Features

  • 20 degree sloped top prevents pooling of liquids and accumulation of other debris
  • Minimum-width body flange provides maximum body opening
  • External formed 90-degree body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Type 304 stainless steel hidden hinges promote clean aesthetic appearance (two hinges on models under 36 in. in height; three hinges for models 36 in. and taller)
  • Corner-formed doors are interchangeable and easily removed by pulling clip-style hinge pins
  • Provision on door for thermoplastic data pocket
  • Provision on door for optional door stop kit
  • Seams continuously welded and ground smooth

Specifications

  • Height (H) (inch): 24
  • Height (H) (millimetre): 610
  • Width (W) (inch): 24
  • Width (W) (millimetre): 610
  • Depth (D) (inch): 12
  • Depth (D) (millimetre): 305
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Panel: CP2424
  • Conductive Panel: CP2424G
  • Panel Size (D x E) (inch): 22.20 x 22.20
  • Panel Size (D x E) (millimetre): 254 x 254
  • Mounting (H x G) (inch): 22.50 x 22.50
  • Mounting (H x G) (millimetre): 572 x 572
  • Latch Quantity: 2
  • Modification Services: Yes
  • Body Thickness (gauge): 16
  • Body Thickness (millimetre): 1.59
  • Color: Unpainted
  • Door Thickness (gauge): 14
  • Door Thickness (millimetre): 1.98
  • Finish: Brushed #4
  • IP Rating: IP66
  • Sub Brand: Concept
  • Size: 24.000 x24.000 x12.000 in

Related Products

Accessory

  • SH10SS04001
  • AS050SS
  • CP2424G
  • CP2424
  • CMTGFT
  • CMFKSS
  • CMC24
  • CPMK24
  • ADSTOPK
  • ADSTOPKSS6
  • ADP1
  • APWK138NFNM
  • APWK116NFNM
  • APWK53NFNM
  • APWK1711NFSS
  • APWK715NFSS
  • APWK711NFSS
  • APWK95NFNM
  • APWK53NFSS
  • APWK95NFSS
  • APWK138NFSS
  • CLKSLOT
  • CLKSM7
  • CLKTM7
  • CLKDBM3
  • CWHPTO
  • CWHNL
  • GHPINSS
  • CDR3P24
  • CWHK
  • CSPBADB
  • CSF2424
  • CSP2424
  • CSPB2424
  • AS1032
  • CAM124
  • CAM122
  • AN1032
  • GP2412SS6
  • CCPM4
  • CRA12TH
  • LEDA2M35
  • LED24V15
  • LEDA1S35

Overview

GTiN 00783510260132
Width 24 in
Size 24.000 x24.000 x12.000 in
Type Wall-Mount, Stainless Steel
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments; Hygienic Environments
Depth 305 mm
Height 24 in
Standard 12,13,4,4X,CSA File No. 42186: Typ,CUL Listed Per CSA C22.2 No 94,File No. E61997,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
Family Brand Name Hoffman
Door Gauge 14
Body Gauge 16
Sub Brand Concept
Product UPC 78351026013
Finish Brushed
Body Thickness 1.59 mm
