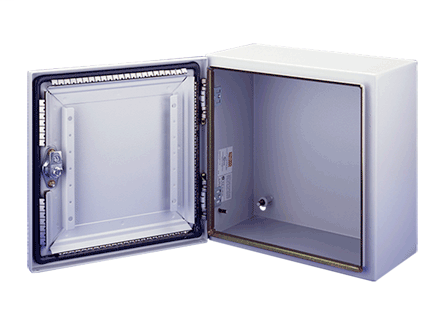

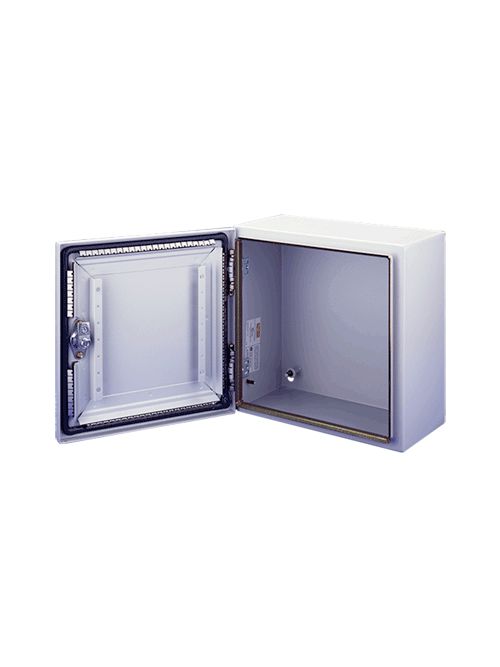

Hoffman CSD24248LGEMC 24 x 24 x 8 Inch Enclosure
$1,708.09/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD24248LGEMC
North Coast Part # 681562

Features

  • 18, 16 or 14 gauge steel
  • Seams continuously welded and ground smooth
  • Minimum width body flange provides maximum door opening
  • External formed body flange channels away liquids
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Door opens 210 degrees
  • Corner-formed door
  • Hinge mounting brackets for wire management or optional accessories
  • Stainless steel spring finger EMI/RFI gasket
  • Quarter-turn latches
  • Grounding stud on body
  • Door bars provided for wire management and bonding
  • Hardware kit includes panel mounting nuts screws, grounding hardware and sealing washers
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Illustrated instruction sheet

Notes

  • Purchase panels separately.

Specifications

  • Bulletin Number: A53
  • Material: Steel
  • Model Code: 25739
  • Ship Wt. Std. Pkg. (lbs): 42.0
  • Interchangeable: False
  • Finish: RAL 7035
  • Catalog Number: CSD24248LGEMC
  • A in.: 24
  • B in.: 24
  • C in.: 8
  • Panel Size D x E in.: 22.20 x 22.20
  • J in.: 5.00
  • Conductive Panel: CP2424G
  • Mounting G x H in.: 22.50 x 22.50
  • CONCEPT Panel: CP2424
  • Door Ga.: 14
  • Body Ga.: 16
  • Latches Qty.: 2
  • Standards: UL 508A Listed; Type 4, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997 || NEMA/EEMAC Type 4, 12, 13 || CSA, File No. 42186: Type 4, 12 || VDE IP66 || IEC 60529, IP66

Overview

UPC 78351025739
GTiN 00783510257392
Finish RAL 7035
Width 24 in
Size 24.00x24.00x8.00 in
Color Gray
Type CONCEPT EMC, Type 4
Material Steel
Applications Use stylish CONCEPT EMC Enclosures with their convenient quarter-turn latches in indoor or outdoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.
Depth 8 in
Height 24 in
Standard IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,CSA, File No. 42186: Type 4, 12,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997
Family Brand Name Hoffman
Door Gauge 14
Body Gauge 16
Number of Latches 2
Sub Brand CONCEPT
