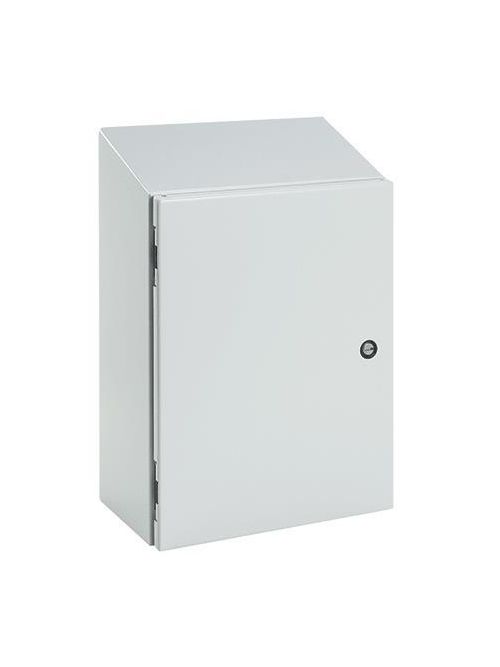

Hoffman CSD302410ST 30 x 24 x 10 Inch Light Gray 16 Gauge Steel NEMA 4 Sloped Top Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,059.75/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD302410ST
North Coast Part # 605356

Features

  • Bonding provision on door and body
  • Panel-mounting studs fit optional Concept panels and other accessories
  • Corner-formed door
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Illustrated instruction sheet
  • External formed body flange channels away liquids
  • Door opens 210 degrees
  • Seamless foam-in-place gasket
  • Quarter-turn latches

Specifications

  • Height (H) (inch): 30
  • Finish: Powder Coated
  • Height (H) (millimetre): 762
  • Width (W) (inch): 24
  • Color: Light Gray
  • Width (W) (millimetre): 610
  • Depth (D) (inch): 10
  • Depth (D) (millimetre): 254
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 4 Watertight
  • Panel: CP3024
  • Conductive Panel: CP3024G
  • Panel Size (D) (inch): 28.2
  • Panel Size (D) (millimetre): 716
  • Panel Size (E) (inch): 22.2
  • Panel Size (E) (millimetre): 564
  • Mounting (G x H) (inch): 32.06 x 22.50
  • Mounting (G x H) (millimetre): 814 x 572
  • Latch Quantity: 2
  • Latch Style: Quarter-turn
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Body Thickness (gauge): 16
  • Body Thickness (millimetre): 1.52
  • Color Code: RAL 7035
  • Door Thickness (gauge): 14
  • Door Thickness (millimetre): 1.9
  • Sub Brand: Concept
  • Size: 30.00x24.00x10.00 in

Related Products

Accessory

  • CP3024
  • CP3024G
  • CMC24
  • CMFK
  • CMTGFT
  • CPMK24
  • ADSTOPK
  • ADP2
  • CLKSM7
  • CLKSLOT
  • CLKDBM3
  • CLKTM7
  • CWF3136LG
  • CWHPTO
  • CWKL
  • CWHD4045LG
  • CWH3136LG
  • CWH4045LG
  • CWHK
  • CWKN
  • CWHD3136LG
  • CWF4045LG
  • CWHNL
  • CSPB3024
  • CSP3024
  • CSPBADB
  • CSF3024
  • AS1032
  • AN1032
  • GHPINMS
  • CCPM4
  • CAM102
  • CRA16TH
  • CDR3P24
  • LEDA1S35
  • LED24V15
  • LEDA2M35
  • GP248

Categories

Overview

GTiN 00783510144654
Finish Powder Coated
Width 24 in
Size 30.00x24.00x10.00 in
Color Gray
Type Wall-Mount, Mild Steel
Material Steel
Applications Arc Flash Safety; Controls and Drives
Depth 254 mm
Height 30 in
Standard CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
Family Brand Name Hoffman
Door Gauge 14
Body Gauge 16
Sub Brand Concept
Product UPC 78351014465
Body Thickness 1.52 mm
