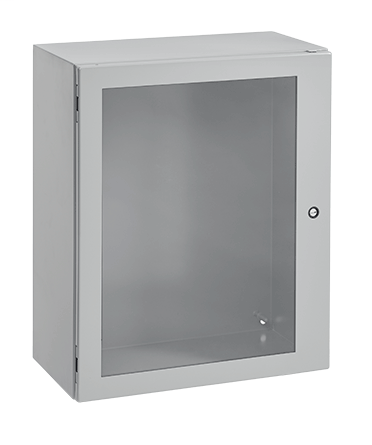

Hoffman CSD302410W 30 x 24 x 10 Inch Gray 16 Gauge Steel NEMA 4/12 1-Door Wall Mount Enclosure

$863.16/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Features

16 or 14 gauge steel (see table)
Seams continuously welded and ground smooth
Corner-formed doors
Simple easy-to-remove and install hinge pins with built-in captivation clip
High-torque threadless studs and fasteners on door
Minimum-width body flange provides maximum door opening (210 degrees)
Door opens 210 degrees
External formed body flange
Panel mounting studs fit optional Concept panels and other accessories
Mounting holes in back of body for optional external wall-mount brackets
Removable door with hidden hinges for clean, aesthetic appearance
Seamless foam-in-place gasket
Quarter-turn slotted latch(es)
Grounding stud on body
Provisions on door for optional high-impact thermoplastic data pocket
Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
Installation instructions provided
Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
Clear polycarbonate window flush with door surface

Purchase panels separately.
Optional NEMA-size panels require conversion kit Catalog Number CCPM4.
Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.

Bulletin Number: CW1
Material: Steel
Model Code: 37789
Ship Wt. Std. Pkg. (lbs): 51.5
Interchangeable: False
Catalog Number: CSD302410W
A in.: 30
B in.: 24
C in.: 10
Panel Size D x E in.: 28.20 x 22.20
Window Size M x N in.: 26.49 x 18.07
J in.: 5.00
Mounting G x H in.: 28.50 x 22.50
CONCEPT Panel: CP3024
Door Ga.: 14
Body Ga.: 16
Conductive CONCEPT Panel: CP3024G
Latches Qty.: 2
Standards: UL 508A Listed; Type 4, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997 || NEMA/EEMAC Type 4, 12, 13 || CSA, File No. 42186: Type 4, 12 || VDE IP66 || IEC 60529, IP66

UPC	78351037789
GTiN	00783510377892
Finish	Powder Coated
Width	24 in
Color	ANSI 61 Gray
Type	Single Door, Double Lock
Material	Steel
Applications	For Machine Control Applications
Mounting Type	Wall
Depth	10 in
Height	30 in
Standard	CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
Family Brand Name	Hoffman
Gauge	16 or 14
Door Gauge	14
Body Gauge	16
Number of Latches	2
Cover Type	Quarter Turn Latch
Sub Brand	Concept
Size	30.00x24.00x10.00 in
