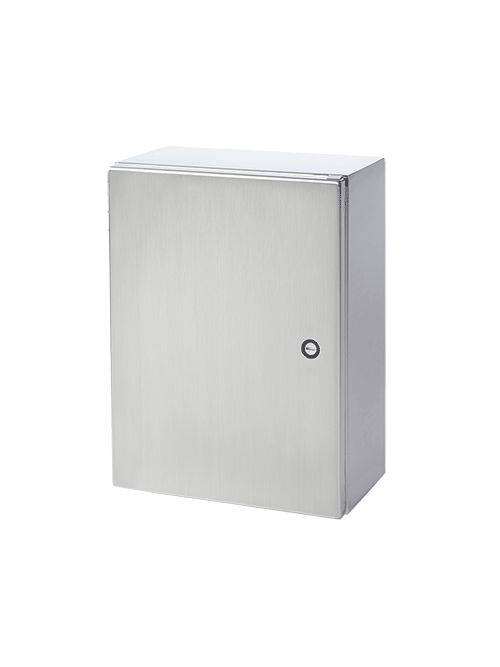

Hoffman CSD30248SS6 30 x 24 x 8 Inch 16 Gauge 316L Stainless Steel NEMA 4X 1-Door Wall Mount Enclosure

$3,414.76/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Minimum-width body flange provides maximum body opening
External formed 90-degree body flange
Panel mounting studs fit optional Concept panels and other accessories
Mounting holes in back of body for direct mounting or for optional external mounting brackets
Type 316 stainless steel hidden hinges promote clean aesthetic appearance
Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket
Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit
Quarter-turn latches furnished with flush slotted insert
Seamless foam-in-place gasket

UPC	78351061930
GTiN	00783510619305
Finish	Brushed
Width	24 in
Size	30.00x24.00x8.00 in
Type	Wall-Mount, Stainless Steel
Material	Stainless Steel
Applications	Controls and Drives; Corrosive Environments
Depth	8 in
Height	30 in
Standard	12,13,4,4X,CSA File No. 42186: Typ,CUL Listed Per CSA C22.2 No 94,File No. E61997,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
Family Brand Name	Hoffman
Door Gauge	14
Body Gauge	16
Number of Latches	2
Sub Brand	Concept
Style	Quarter-turn
