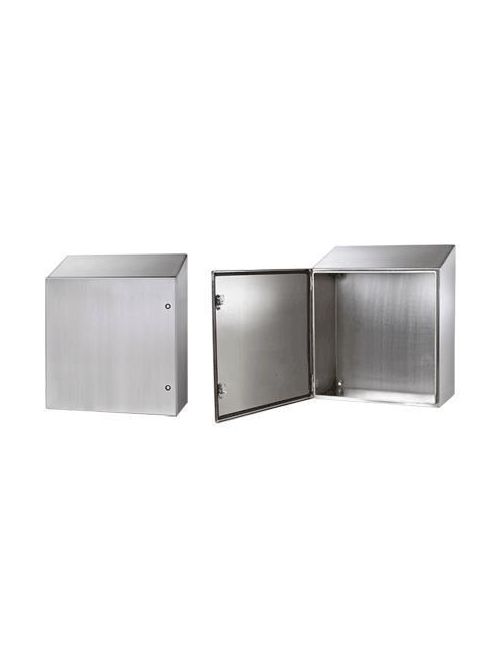

Hoffman CSD36248SSST 36 x 24 x 8 Inch 16 Gauge 304 Stainless Steel NEMA 4X Sloped Top Wall Mount Enclosure

Features

• 20 degree sloped top prevents pooling of liquids and accumulation of other debris
• Minimum-width body flange provides maximum body opening
• External formed 90-degree body flange
• Panel mounting studs fit optional Concept panels and other accessories
• Mounting holes in back of body for direct mounting or for optional external mounting brackets
• Type 304 stainless steel hidden hinges promote clean aesthetic appearance (two hinges on models under 36 in. in height; three hinges for models 36 in. and taller)
• Corner-formed doors are interchangeable and easily removed by pulling clip-style hinge pins
• Provision on door for thermoplastic data pocket
• Provision on door for optional door stop kit
• Seams continuously welded and ground smooth

Specifications

• Height (H): 914 millimetre
• Width (W): 610 millimetre
• Depth (D): 203 millimetre
• Protection Rating: NEMA Type 12
• Material: Stainless Steel 304
• NEMA Rating: 4X Watertight, corrosion-resistant
• Panel: CP3624
• Conductive Panel: CP3624G
• Panel Size (D x E): 869 x 564 millimetre
• Mounting (H x G): 876 x 572 millimetre
• Latch Quantity: 2
• Modification Services: Yes
• Body Thickness: 1.59 millimetre
• Color: Unpainted
• Door Thickness: 1.98 millimetre
• Finish: Brushed #4
• IP Rating: IP66
