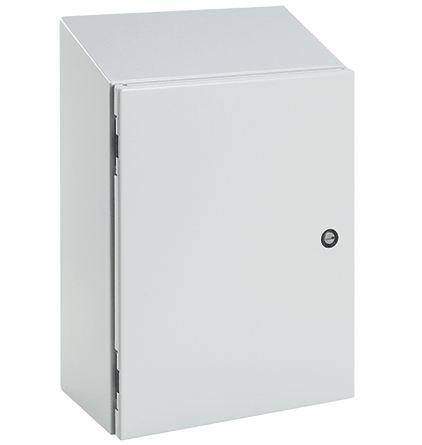

Hoffman CSD363012ST 36 x 30 x 12 Inch Light Gray 14 Gauge Steel NEMA 4 Sloped Top Wall Mount Enclosure
$1,156.62/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD363012ST
North Coast Part # 493723

Features

  • 14 or 16 gauge steel
  • Bonding provision on door and body
  • Panel-mounting studs fit optional Concept panels and other accessories
  • Corner-formed door
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Illustrated instruction sheet
  • External formed body flange channels away liquids
  • Door opens 210 degrees
  • Seamless foam-in-place gasket
  • Quarter-turn latches
  • Mounting holes in back of body for optional external mounting brackets
  • Larger sizes support 19-in. rack mounting
  • Door alignment device on doors wider than 30-in.
  • Minimum-width body flange provides maximum door opening
  • 20-degree sloped top

Notes

  • Purchase panels separately.

Accessories

  • Door Stop Kit
  • Industrial Corrosion Inhibitors
  • Handles
  • Lock Inserts
  • Concept Panels
  • Mounting-Bracket Kits

Specifications

  • Bulletin Number: CW2
  • Material: Steel
  • Model Code: 14473
  • Ship Wt. Std. Pkg. (lbs): 95.0
  • Interchangeable: False
  • Finish: RAL 7035
  • Catalog Number: CSD363012ST
  • A in.: 36
  • B in.: 30
  • C in.: 12
  • J in.: 5.00
  • Conductive Panel: CP3630G
  • Mounting G x H in.: 38.79 x 28.50
  • A2 in.: 40.29
  • Panel: CP3630
  • Latch Qty.: 2
  • Door Ga.: 14
  • Body Ga.: 14
  • Panel Size D in.: 34.20
  • Panel Size E in.: 28.20
  • Latch style: Quarter-turn
  • Standards: UL 508A Listed; Type 4, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997 || NEMA/EEMAC Type 4, 12, 13 || CSA, File No. 42186: Type 4, 12 || VDE IP66 || IEC 60529, IP66

Categories

Overview

UPC 78351014473
GTiN 00783510144739
Finish RAL 7035
Width 30 in
Size 36.00x30.00x12.00 in
Color Gray
Type Wall-Mount, Mild Steel
Material Steel
Applications Arc Flash Safety; Controls and Drives
Depth 12 in
Height 36 in
Standard CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
Family Brand Name Hoffman
Door Gauge 14
Body Gauge 14
Sub Brand Concept
