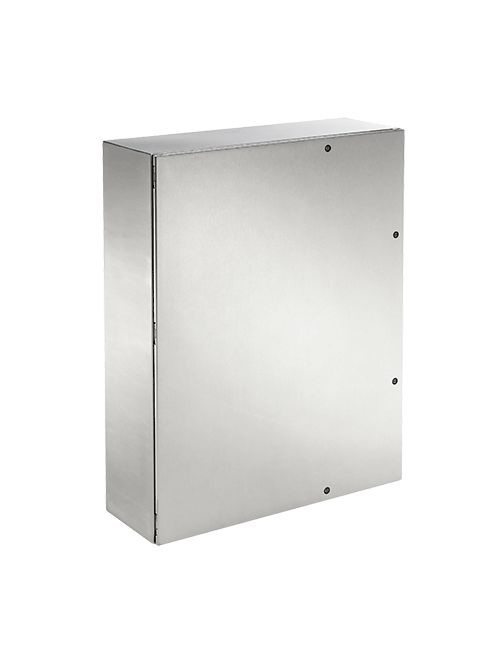

Hoffman CSD363610SS6R 36 x 36 x 10 Inch 14 Gauge 316L Stainless Steel NEMA 4X Wall Mount Enclosure
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD363610SS6R
North Coast Part # 599167


  • Manufactured from 14 gauge Type 304 or Type 316L stainless steel
  • Seams continuously welded and ground smooth
  • Minimum-width body flange provides maximum body opening
  • Corner formed doors
  • External formed 90-degree body flange
  • Stainless steel quarter-turn latches with flush slotted insert provided on three sides of enclosure door
  • Integral door alignment device to properly align door and gasket to body offset
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting or for optional external mounting brackets
  • Stainless steel hidden hinges
  • Doors are interchangeable and easily removed by pulling clip-style hinge pins
  • Provision on door for thermoplastic data pocket
  • Provision on door for optional doorstop kit
  • Seamless foam-in-place gasket
  • Self-grounding latch system with double seal
  • Bonding provision on door; grounding stud on body
  • Furnished hardware kit consists of panel mounting nuts, panel grounding hardware and sealing washers for wall-mounting holes
  • Installation instructions


  • Purchase panels separately.
  • Optional NEMA style steel and stainless steel panels require conversion kit catalog number CCPM-4.
  • Catalog numbers ending in 6R are Type 316L stainless steel.


  • Industrial Corrosion Inhibitors
  • Type 316 Stainless Steel Door Stop Kit
  • Concept Panels
  • H2Omit Vent Drains, Type 4X
  • H2Omit Thermoelectric Dehumidifier
  • Handles
  • Lock Inserts


  • Bulletin Number: CWS
  • Material: Stainless Steel
  • Model Code: 14837
  • Ship Wt. Std. Pkg. (lbs): 93.0
  • Interchangeable: FALSE
  • Catalog Number: CSD363610SS6R
  • A in.: 36
  • B in.: 36
  • C in.: 10
  • Style: Quarter-turn
  • Panel Size D x E in.: 34.20 x 34.20
  • J in.: 10
  • Conductive Panel: CP3636G
  • Mounting G x H in.: 34.50 x 34.50
  • Panel: CP3636
  • Body Gauge: 14
  • Door Gauge: 14
  • Latches Qty.: 4
  • Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 3R, 4, 4X, 12; File Number E61997 || NEMA/EEMAC Type 3R, 4, 4X, 12, 13 || IEC 60529, IP66 ||


UPC 78351014837
GTiN 00783510148379
Width 36 in
Size 36.00x36.00x10.00 in
Type Wall-Mount, Stainless Steel
Material Stainless Steel
Applications Controls and Drives; Corrosive Environments
Depth 10 in
Height 36 in
Standard 12,13,4,4X,CUL Listed Per CSA C22.2 No 94,File No. E61997,File Number E61997,IEC 60529,IP66,Mee,Mounting Brackets Required To Meet UL/CSA External Mounting Requirements.,NEMA/EEMAC Type 3R,Type 3R,UL 508A Listed
Family Brand Name Hoffman
Door Gauge 14
Body Gauge 14
Number of Latches 4
Sub Brand Concept
