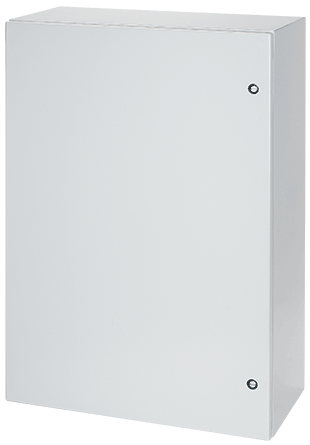

NVENT CSD423016LG CONCEPT 1Door RAL
$1,166.91/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD423016LG
North Coast Part # 1273040

Features

  • 16 or 14 gauge steel (see table)
  • Seams continuously welded and ground smooth
  • Corner-formed doors
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Minimum-width body flange provides maximum door opening (210┬ádegrees)
  • Door opens 210 degrees
  • External formed body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for optional external wall-mount brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Seamless foam-in-place gasket
  • Quarter-turn slotted latch(es)
  • Door alignment device on doors wider than 30 in.
  • Four hinges on 60in.-high enclosures
  • Grounding stud on body; bonding provision on door
  • Provisions on door for optional high-impact thermoplastic data pocket
  • Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
  • Installation instructions provided
  • Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch

Notes

  • Purchase panels separately.
  • Optional NEMA-size panels require conversion kit Catalog Number CCPM4.
  • Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.

Accessories

  • Door Stop Kit
  • Handles
  • Lock Inserts
  • Concept Panels
  • Mounting-Bracket Kits

Specifications

  • Bulletin Number: CW1
  • Material: Steel
  • Model Code: 29487
  • Interchangeable: False
  • Finish: RAL 7035 Lt. Gray
  • Catalog Number: CSD423016LG
  • A in.: 42
  • B in.: 30
  • C in.: 16
  • Panel Size D x E in.: 40.20 x 28.20
  • J in.: 21.00
  • Mounting G x H in.: 40.50 x 28.50
  • CONCEPT Panel: CP4230
  • Door Ga.: 14
  • Body Ga.: 14
  • Conductive CONCEPT Panel: CP4230G
  • Latches Qty.: 1
  • Latches style: 3-point
  • Standards: UL 508A Listed; Type 4, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997 || NEMA/EEMAC Type 4, 12, 13 || CSA, File No. 42186: Type 4, 12 || VDE IP66 || IEC 60529, IP66

Overview

UPC 78351029487
GTiN 00783510294878
Finish RAL 7035 Lt. Gray
Width 30 in
Color Gray
Material Steel
Depth 16 in
Height 42 in
Standard IEC 60529, IP66,VDE IP66,UL 508A Listed; Type 4, 12; File No. E61997,NEMA/EEMAC Type 4, 12, 13,CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997
Family Brand Name nVent HOFFMAN
Latches Style 3-point
Door Gauge 14
Body Gauge 14
Number of Latches 1
Size 42.00x30.00x16.00 in
Type Wall-Mount, Mild Steel
Applications Controls and Drives
Sub Brand Concept
