NVENT HOF CSD60368 CONCEPT 1Door AN

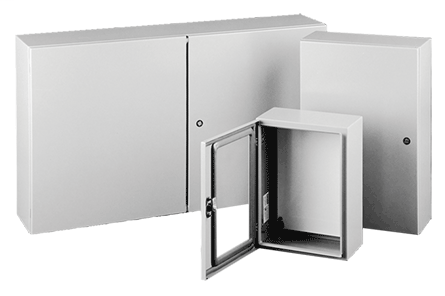

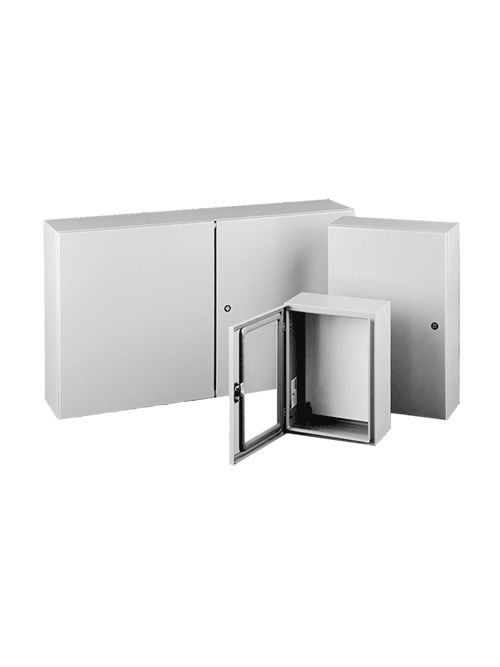

Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1,295.08/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSD60368
North Coast Part # 1273284

Features

  • Seams continuously welded and ground smooth
  • Corner-formed doors
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Minimum-width body flange provides maximum door opening (210 degrees)
  • Door opens 210 degrees
  • External formed body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for optional external wall-mount brackets
  • Removable door with hidden hinges for clean, aesthetic appearance

Specifications

  • Height (H) (inch): 60
  • Height (H) (millimetre): 1,524
  • Width (W) (inch): 36
  • Width (W) (millimetre): 914
  • Depth (D) (inch): 8
  • Depth (D) (millimetre): 203
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • Finish: Powder Coated
  • Color: Gray
  • Color Code: ANSI 61
  • Body Thickness (gauge): 14
  • Body Thickness (millimetre): 1.9
  • Door Thickness (gauge): 14
  • Door Thickness (millimetre): 1.9
  • NEMA Rating: 12 Indoor, dust-resistant
  • Concept Panel: CP6036
  • Conductive Concept Panel: CP6036G
  • Panel Size (D x E) (inch): 58.20 x 34.20
  • Panel Size (D x E) (millimetre): 1478 x 869
  • Mounting (G x H) (inch): 58.50 x 34.50
  • Mounting (G x H) (millimetre): 1486 x 876
  • Latch Quantity: 1
  • Latch Style: 3-point
  • Modification Services: Yes
  • Type Number: Type 4
  • IP Rating: IP66
  • Sub Brand: Concept
  • Size: 60.00x36.00x8.00 in

Related Products

Accessory

  • CWHNL
  • LED24V15
  • ADP1
  • CWHD5557
  • CWH3136LG
  • CWF4045
  • CWHPTO
  • CWH3136
  • CWF5557LG
  • CWHD4045
  • CWHD3136LG
  • CWKL
  • CWF3136LG
  • CWH4045
  • CWF5557
  • CWKN
  • CWHD4045LG
  • CWH4045LG
  • CWHK
  • CWHD3136
  • CWH5557
  • CWF3136
  • CWF4045LG
  • CMFKSS
  • CMTGFT
  • CMFK
  • ADSTOPK
  • ADP2
  • AWDH2430N4
  • AWDH2420N4
  • AWDH3624N4
  • AWDH1612N4
  • AWDH2016N4
  • AWDH1418N4
  • AWDH2416N4
  • AWDH3024N4
  • CLKSLOT
  • CLKTM7
  • CLKSM7
  • CLKDBM3
  • CSPBADB
  • CSPB6036
  • GHPINMS
  • CAM82
  • CAM84

Categories

Overview

UPC 78351029437
Item Long Description Concept Enclosures have streamlined styling, flush quarter-turn latches and an attractive, durable finish.
GTiN 00783510294373
Finish Polyester Powder Painted
Width 36 in
Color ANSI 61 Gray
Type Single Door
Material Steel
Applications For Industrial, Machine Control Applications
Mounting Type Wall
Depth 8 in
Height 60 in
Standard CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
Family Brand Name Hoffman
Latches Style 3-point
Gauge 14
Door Gauge 14
Body Gauge 14
Number of Latches 1
Cover Type 3-Point Latch
Sub Brand Concept
Size 60.00x36.00x8.00 in
Body Thickness 1.9 mm
