Hoffman CSPB4836 45.72 x 33.75 Inch 94 Degrees Painted White Enclosure Swing-Out Panel
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$524.75/ea
Usually ships within 7 to 11 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CSPB4836
North Coast Part # 335764

Features

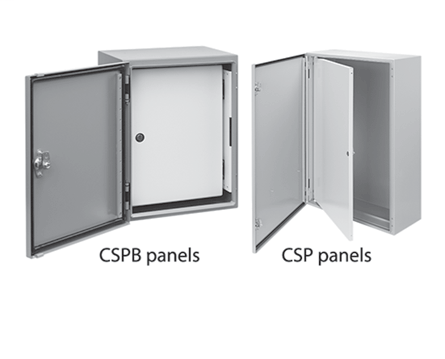

  • CSPB panels, maximum swing is 94 degrees
  • CSP panels, maximum panel swing is 106 degrees
  • Distance from panel surface to door when in the latched position is 1.71 in. (43 mm) for solid doors and 1.45 in. (37 mm) for window doors
  • Kits include panel, brackets and hardware to mount to the front flange

Specifications

  • Material: Mild Steel
  • Fits Enclosure Size (inch): 48.00 x 36.00
  • Fits Enclosure Size (millimetre): 1219 x 914
  • Panel Size (inch): 45.72 x 33.75
  • Panel Size (millimetre): 1161 x 857
  • Modification Services: Yes
  • Color: White
  • Finish: Powder Coated
  • Thickness (T) (gauge): 12
  • Thickness (T) (millimetre): 2.66
  • Sub Brand: Concept
  • Size: fits 48.00x36.00 in

Categories

Overview

UPC 78351016511
Item Long Description Panels swing clear from the front of the enclosure to provide access to mounted internal equipment. For CSPB panels, maximum swing is 94 degrees. For CSP panels, maximum panel swing is 106 degrees. Distance from panel surface to door when in the latched position is 1.71 in. (43 mm) for solid doors and 1.45 in. (37 mm) for window doors. Kits include panel, brackets and hardware to mount to the front flange. Swing-out panels also can be mounted on front-to-back adjustable rails. CSPB panels require adapter CSPBADB and front-to-back adjustable rails for front-to-back adjustment.
GTiN 00783510165116
Finish Powder Coated
Width 857 mm
Color White
Type 94
Material Steel
Height 1161 mm
Family Brand Name Hoffman
Used With 48 x 36 in Enclosures
Sub Brand Concept
Size fits 48.00x36.00 in
Applications Arc Flash Safety; Controls and Drives; Power Distribution
Thickness 2.66 mm
