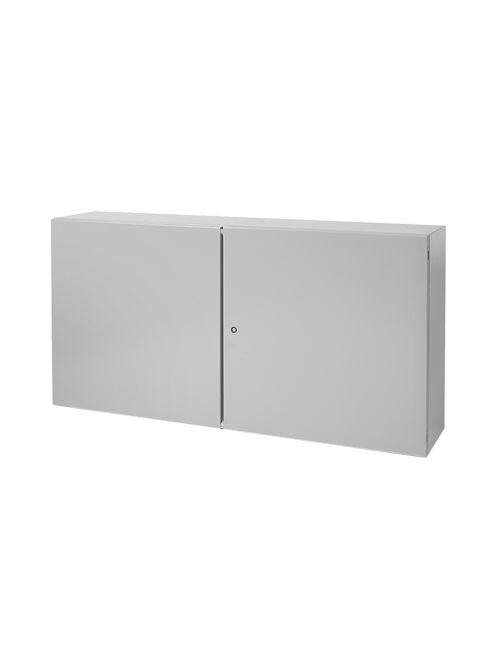

Hoffman CTD364812LG 36 x 48 x 12 Inch Enclosure
$1,482.05/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CTD364812LG
North Coast Part # 666707

Features

  • 14 gauge steel
  • Seams continuously welded and ground smooth
  • Corner-formed doors
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Minimum-width body flange provides maximum door opening (210┬ádegrees)
  • Door opens 210 degrees
  • External formed body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for optional external wall-mount brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Seamless foam-in-place gasket
  • Quarter-turn slotted latch(es)
  • Door alignment device on doors wider than 30 in.
  • Four hinges on 60in.-high enclosures
  • Grounding stud on body; bonding provision on door
  • Provisions on door for optional high-impact thermoplastic data pocket
  • Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
  • Installation instructions provided
  • Overlapping door design that provides full-width access
  • Three-point latch system on right-hand hinged door furnished with flush slotted insert

Notes

  • Purchase panels separately.
  • Optional NEMA-size panels require conversion kit Catalog Number CCPM4.
  • Reference the Specification Sheet for Popular Cooling Products and Popular Accessories.

Accessories

  • Door Stop Kit
  • Handles
  • Lock Inserts
  • Concept Panels
  • Mounting-Bracket Kits

Specifications

  • Bulletin Number: CW1
  • Material: Steel
  • Model Code: 16549
  • Ship Wt. Std. Pkg. (lbs): 132.0
  • Interchangeable: False
  • Finish: RAL 7035 Lt. Gray
  • Catalog Number: CTD364812LG
  • A in.: 36
  • B in.: 48
  • C in.: 12
  • Panel Size D x E in.: 34.20 x 46.20
  • J in.: 18.00
  • Mounting G x H in.: 34.50 x 46.50
  • CONCEPT Panel: CP4836
  • Door Ga.: 14
  • Body Ga.: 14
  • Conductive CONCEPT Panel: CP4836G
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA, File No. 42186, Type 12 || VDE IP 55 || IEC 60529, IP55

Overview

UPC 78351016549
GTiN 00783510165499
Finish Powder Coated
Width 48 in
Color RAL 7035 Light Gray
Type Double Door, Single Lock
Material Steel
Applications For Machine Control Applications
Mounting Type Wall
Depth 12 in
Height 36 in
Standard VDE IP 55,CUL Listed Per CSA C22.2 No. 94; Type 12; File No. E61997,CSA, File No. 42186, Type 12,IEC 60529, IP55,UL 508A Listed; Type 12; File No. E61997,NEMA/EEMAC Type 12
Family Brand Name Hoffman
Gauge 16 or 14
Door Gauge 14
Body Gauge 14
Cover Type Quarter Turn Slotted Latch
Sub Brand Concept
