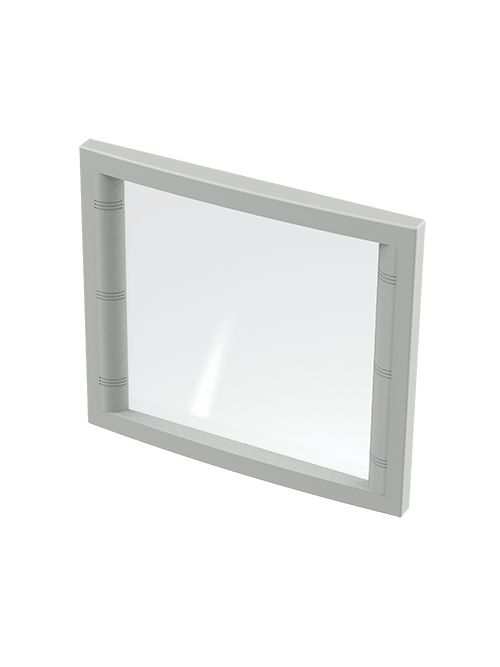

Hoffman CWF4045 15.75 x 17.72 x 1.3 Inch Gray Die-Cast Aluminum Fixed Window Kit
$426.67/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # CWF4045
North Coast Part # 670909

Overview

  • Bulletin Number: C2
  • Material: Aluminum
  • Model Code: 41580
  • Ship Wt. Std. Pkg. (lbs): 5.84
  • Interchangeable: False
  • IP Rating: IP66

Description

  • Aesthetic die-cast aluminum frame has .188-in. (5-mm) thick, clear polycarbonate window. Pre-assembled kit is secured to front opening of enclosure by four mounting screws. Furnished window frame caps conceal mounting screws. Hinged window kit is hinged on left side and has a single-point slotted latch (optional locking or non-locking wing knob latch is also available). Textured finish, ANSI 61 gray or RAL 7035 light gray.

Technical Data

  • Height (A) in.: 15.75
  • Width (B) in.: 17.72
  • Depth (C) in.: 1.299999952
  • Description: Fixed window kit
  • Window Size M x N in.: 13.50 x 14.40

Categories

Overview

UPC 78351041580
GTiN 00783510415808
Width 17.72 in
Size fits 400x450mm
Color ANSI 61
Type CONCEPT Fixed and Hinged Window Kits
Material Aluminum
Applications Aesthetic die-cast aluminum frame has .188-in. (5-mm) thick, clear polycarbonate window. Pre-assembled kit is secured to front opening of enclosure by four mounting screws. Furnished window frame caps conceal mounting screws. Hinged window kit is hinged o
Depth 1.30 cm
Height 15.75 in
Family Brand Name Hoffman
IP Rating IP66
Sub Brand CONCEPT
