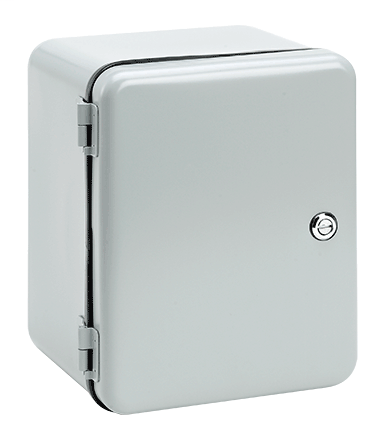

Hoffman D1084IS 10 x 8 x 4 Inch NEMA 12 Steel Hinged Cover Junction Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$205.24/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # D1084IS
North Coast Part # 67654

Features

  • Drawn enclosure
  • No welded seams or sharp corners
  • Removable door with unique lift-off hinges
  • Oil-tight quarter-turn slotted latches
  • Oil-resistant gasket
  • Weldnuts provided for mounting optional panels
  • Bonding provision on door

Specifications

  • Height (H) (inch): 10
  • Height (H) (millimetre): 254
  • Width (W) (inch): 8
  • Width (W) (millimetre): 203
  • Depth (D) (inch): 4
  • Depth (D) (millimetre): 102
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Panel Size (inch): 8.75 x 6.88
  • Panel Size (millimetre): 222 x 175
  • Conductive Panel: A10P8G
  • Overall Dimensions (L x W) (inch): 10.09 x 8.45
  • Overall Dimensions (L x W) (millimetre): 256 x 215
  • Panel: A10P8
  • Modification Services: Yes
  • Type Number: Type 12
  • IP Rating: IP55
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 16
  • Thickness (T) (millimetre): 1.52
  • Sub Brand: DesignLine
  • Size: 10.00x8.00x4.00 in

Related Products

Accessory

  • A10P8
  • A10P8G
  • A10P8AL
  • A10P8SS
  • AJCDFK
  • A8JTMA
  • A10P8C
  • A10JS
  • A10JBNS
  • A10JTMA
  • DHDLK
  • A8JS
  • A8JBNS
  • A10JTMAXK
  • DMFK1
  • AS050

Overview

UPC 78351060410
Item Long Description Use in applications where panel or an extra-deep cover for mounting of controls is desired. Protects equipment from indoor contaminants.
GTiN 00783510604103
Finish Polyester Powder Paint
Width 8 in
Size 10.00x8.00x4.00 in
Color ANSI 61 Gray
Type Contoured
Material Drawn Steel
Applications Use in Applications Where Panel or an Extra-Deep Cover for Mounting of Controls is Desired and for Protection of Equipment from Indoor Contaminants
Depth 4 in
Height 10 in
Standard CUL Listed Per CSA C22.2 No. 94; Type 12; File No. E61997,IEC 60529, IP55,NEMA/EEMAC Type 12,UL 508A Listed; Type 12; File No. E61997
Family Brand Name Hoffman
Gauge 16
Cover Type Removable, Hinged with Quick-Release Latch
Sub Brand DesignLine
Thickness 1.52 mm
