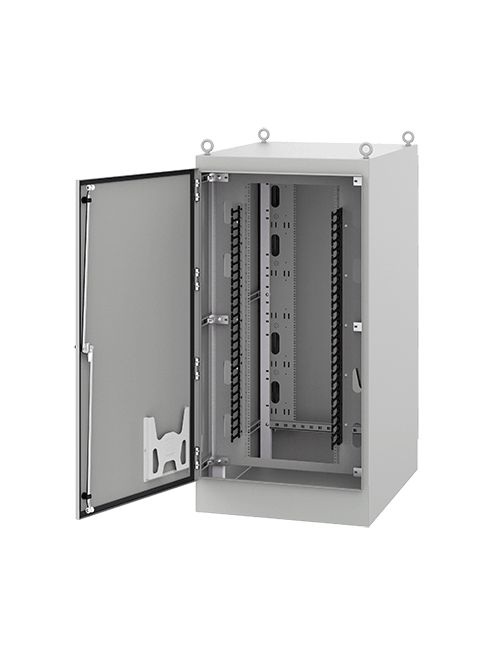

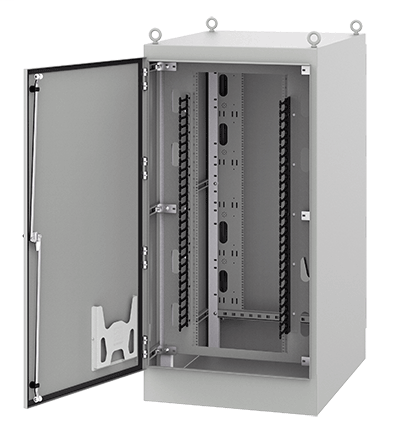

NVENT HOF D722436SDA Seismic 72x24x
$3,307.95/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # D722436SDA
North Coast Part # 1494960

Features

  • 12 gauge steel construction
  • Seams continuously welded and ground smooth; no holes or knockouts
  • Lifting eyes for easy handling
  • Welded front-to-rear mounting struts, 3 on each side
  • Vault style 3-point latches operated by oil-tight, key-locking handle
  • Concealed and removable hinges
  • Seismic bottom mounting plates (qty. 6) made of painted plate steel for 5/8-in. diameter anchors
  • Data pockets are high-impact thermoplastic
  • Internal mounting channels welded horizontally to sides at top, bottom and center
  • 36-in. wide models include 2 Seismic Rack Panel Kits with EIA 310 specified square-holes (.375 x .375) that are infinitely adjustable front to rear
  • 24-in. models include 2 Rack Mounting Angles tapped #10-32 thread and spaced per EIA 310 that are infinitely adjustable front to rear
  • On 36-in. wide models, front Seismic Rack Panel includes integral, vertical, RU-aligned fingers for supporting copper and fiber networking cables
  • Oil-resistant door gasket
  • Bonding provision on door
  • Provision for mounting enclosure light kits

Accessories

  • 19-in. Rack-Mounted Shelves
  • Bonding and Grounding Kits
  • Full and partial Panels (Painted and Plated)
  • PDUs: 19-in. Rack- and Vertical-Mounted
  • Electric Heater
  • Door Stop Kit
  • Cooling Products (Air Conditioners, Heaters, Fan kits)
  • Enclosure Light Kits

Specifications

  • Bulletin Number: DSFS
  • Material: Steel
  • Model Code: 35446
  • Catalog Number: D722436SDA
  • A in.: 72.22
  • B in.: 24.11
  • C in.: 36.14
  • Rack Units: 32
  • Standards: UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || E.I.A. RS310-D || CSA, File No. 42186, Type 12 || IEC 60529, IP55 || OSPHD Pre Approved OPM -0248-13 || NEBS-Telecordia GR-63-CORE Zone 4: Tested with 1000 lb. of equipment installed || Meets California Building Code (CBC) requirements

Categories

Overview

UPC 78351035446
GTiN 00783510354466
Width 24.11 in
Material Steel
Depth 36.14 in
Height 72.22 in
Standard CSA, File No. 42186, Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12; File No. E61997,E.I.A. RS310-D,IEC 60529, IP55,Meets California Building Code (CBC) Requirements,NEBS-Telecordia GR-63-CORE Zone 4: Tested With 1000 Lb. Of Equipment Installed,NEMA/EEMAC Type 12,OSPHD Pre Approved OPM -0248-13,UL 508A Listed; Type 12; File No. E61997
Family Brand Name Hoffman
Rack Unit 32
