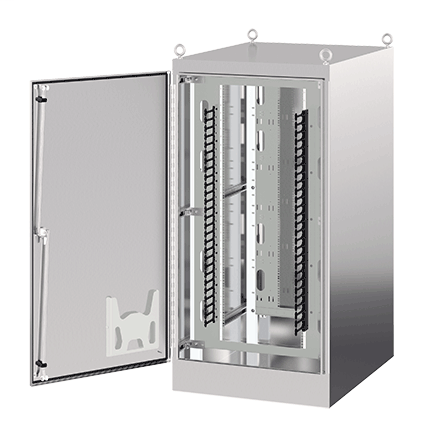

NVENT HOF D723646SDAS Seismic 72x36
$15,277.27/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # D723646SDAS
North Coast Part # 1679426

Features

  • Seams continuously welded and ground smooth; no holes or knockouts
  • Data pockets are high-impact thermoplastic
  • 12 gauge 304 stainless steel construction
  • Lifting eyes for easy handling
  • Welded front-to-rear mounting struts, 3 on each side
  • Vault style 3-point latches operated by oil-tight, key-locking handle
  • Concealed, removable hinges
  • Seismic bottom-mounting plates (qty. 6) made of painted plated steel for 5/8-in. diameter anchors
  • Internal mounting channels welded horizontally to sides at top, bottom and center
  • 36-in. wide models include 2 Seismic Rack Panel Kits with EIA 310 specified square-holes (.375 x .375) that are infinitely adjustable front to rear
  • 24-in. models include 2 Rack Mounting Angles tapped #10-32 thread and spaced per EIA 310 that are infinitely adjustable front to rear
  • On 36-in. wide models, Seismic Rack Panel includes integral, vertical, RU-aligned fingers for supporting copper and fiber networking cables
  • Oil-resistant door gasket
  • Bonding provision on door
  • Provision for mounting enclosure light kits

Accessories

  • 19-in. Rack Mounted Shelves
  • Bonding and Grounding Kits
  • Full and Partial Panels (Painted and Plated)
  • PDUs: 19-in. Rack- and Vertical-Mounted
  • Electric Heater
  • Door Stop Kit
  • Cooling Products (Air Conditioners, Heaters, Fan kits)
  • Enclosure Light Kits

Specifications

  • Bulletin Number: DSFS
  • Material: 304 Stainless Steel
  • Model Code: 35451
  • Catalog Number: D723646SDAS
  • A in.: 72.22
  • B in.: 36.14
  • C in.: 46.16
  • Rack Units: 32
  • Standards: UL 508A Listed; Type 3R, 4, 4X, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 3R, 4, 4X, 12; File No. || E61997 || NEMA/EEMAC Type 3R, 4, 4X, 12 || E.I.A. RS310-D || CSA, File No. 42186, Type || IEC 60529, IP66 || OSPHD Approved OPM -0248-13 || NEBS-Telecordia GR-63-CORE Zone 4: Tested with 1000 lb. of equipment installed || Meets California Building Code (CBC) requirements

Categories

Overview

UPC 78351035451
GTiN 00783510354510
Width 36.14 in
Material Stainless Steel
Depth 46.16 in
Height 72.22 in
Family Brand Name Hoffman
Rack Unit 32
