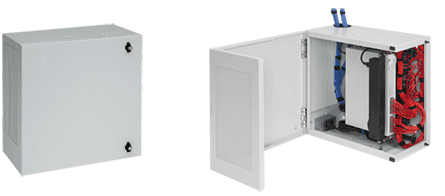

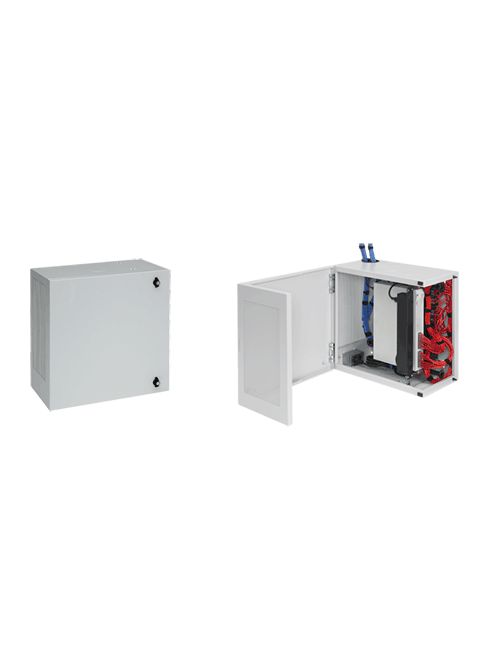

Hoffman DBL362412G 36 x 24 x 12 Inch Gray Wall Mount Cabinet L-Box
$953.98/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # DBL362412G
North Coast Part # 755520

Features

  • Spring-loaded, self-retained hinge pins allow door removal
  • 120-degree door opening
  • Quarter-turn latches with key lock
  • One set of fixed rack angles is included on 24- and 36-in. (610- and 914-mm) tall models and two on 48-in. (1219-mm) tall models
  • Rack angles on 36-in. (914-mm) models can be positioned either at the top or the bottom of the cabinet
  • 36- and 48-in. (914- and 1219-mm) tall models have space for patch panel or shelf brackets
  • Knockouts for 4-in. (102-mm) fan on top and bottom of cabinet
  • Wiring knockouts (7/8 in., 1-3/8 in., and 3 in.) on top and bottom of cabinet & Two 3-in. cable entry knockouts on back
  • Multiple cable tie-down points on back of cabinet
  • Keyhole mounting slots spaced 16.00 in. (406 mm) on center for easy cabinet mounting
  • Includes package of twenty 10-32 mounting screws
  • Manufactured from 14 gauge mild steel
  • Self-grounding mounting angles made of 12 gauge plated steel
  • Bonding provision on door
  • Ground stud on body
  • EIA Universal 5/8 - 5/8 - 1/2 in. rack angle mounting hole pattern matches industry standards. Holes are tapped 10-32

Specifications

  • Bulletin Number: DWS1
  • Material: Steel
  • Model Code: 14374
  • Ship Wt. Std. Pkg. (lbs): 61.0
  • Interchangeable: False
  • Finish: Steel/LtGray
  • Catalog Number: DBL362412G
  • A in.: 36
  • B in.: 24
  • C in.: 12.34
  • Rack Units: 6
  • H in.: 34.00
  • Standards: UL 2416 Listed; File No. E230874 || UL 508A Listed; Type 1; File Number E61997 || cUL Listed per CSA C22.2 No. 182.4; File No. E230874 || Ventilation complies with UL 60950 || Designed in accordance with BICSI TDMM Tenth edition, || Chapter 7, Telecommunication Enclosures (TE) || EIA 310-D || IEC 60529, IP30

Overview

UPC 78351014374
GTiN 00783510143749
Finish Steel/LtGray
Width 24 in
Color Gray
Type L-BOX, Type 1
Material Steel
Applications The low-profile, vertically-oriented L-BOX wall-mount cabinet is extremely versatile and can be used in public settings to mount, store and protect network equipment, patch panels and connections. The hinged, L-shaped door provides full access on two sides to installed equipment while fixed rack angles accommodate varying equipment sizes.
Depth 12.34 in
Height 36 in
Standard UL 508A Listed; Type 1; File Number E61997,EIA 310-D,Designed In Accordance With BICSI TDMM Tenth Edition,,Ventilation Complies With UL 60950,Chapter 7, Telecommunication Enclosures (TE),UL 2416 Listed; File No. E230874,IEC 60529, IP30,CUL Listed Per CSA C22.2 No. 182.4; File No. E230874
Family Brand Name Hoffman
Rack Unit 6
Sub Brand Hoffman
