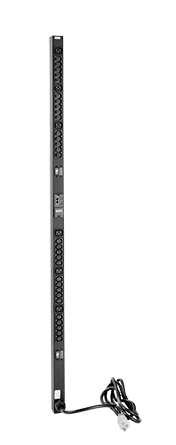

Hoffman DP1N481815 15 Amp 120 VAC 1-Phase NEMA 5-15R Steel Vertical Mount Power Distribution Unit
$194.53/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # DP1N481815
North Coast Part # 669341

Features

  • Power on/off LED indicates whether power is available at the PDU
  • External ground stud provided on single-phase models for secure grounding
  • Circuit breakers provide additional equipment protection
  • Circuits are isolated on dual circuit model; each has its own circuit breaker
  • Reset button provides easy access to circuit breaker reset
  • Surge protector models have an indicator LED to verify surge circuitry protection
  • Rack-mount models mount directly to rack or with adapter bracket
  • Rack-mount models designed for single-phase applications
  • Panel-mount models can be mounted flush or with hanging bracket
  • Steel housing
  • Power cord with molded-on plug: 2-in. (305-mm) long single-phase model: 6 ft. (1.8 m); Other single-phase models: 15 ft. (4.6 m)

Notes

  • Contact Hoffman for custom modifications and non-standard offerings.
  • Isolate circuits on dual circuit models with separate circuit breakers.

Specifications

  • Bulletin Number: DPS
  • Material: Steel
  • Model Code: 16875
  • Ship Wt. Std. Pkg. (lbs): 6.6
  • Interchangeable: False
  • Catalog Number: DP1N481815
  • Description: Single-Phase Rack-Mount
  • Length in.: 48.00
  • Surge Protection: No
  • Load Rating: 15A
  • Voltage VAC: 120
  • No. of Receptacles: 18
  • Receptacle Style: NEMA 5-15R
  • Power Cord Plug: NEMA 5-15P
  • Standards: UL/cUL 60950 listed || UL 1449 (Surge protector models only) || EIA 310-D (19-in. rack-mount models only)

Categories

Overview

UPC 78351016875
GTiN 00783510168759
Length 48.00 in
Voltage 120 Volt
Type Cable and Power Management
Material Steel
Applications For Mounted in Cabinets or on Open Frame Rack
Standard EIA 310-D (19-in. Rack-mount Models Only),UL 1449 (Surge Protector Models Only),UL/cUL 60950 Listed
Family Brand Name Hoffman
Sub Brand Hoffman
Mounting Type Vertical
Number of Outlets 18
Blade Dimensions 48 in L
