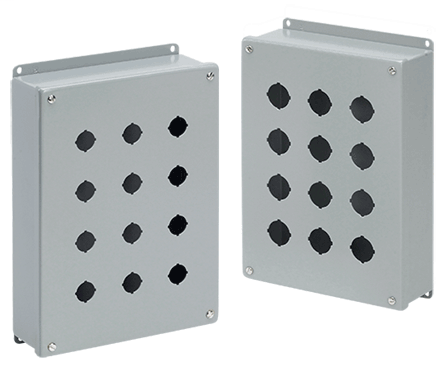

10 PB ENCLOSURE 24.75X3.25X2.7
$251.83/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E10PB
North Coast Part # 668848

Features

  • 16 or 14 gauge steel
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes

Accessories

  • Industrial Corrosion Inhibitors
  • Hol-Sealers Hole Seals
  • Tamper-Resistant Screws

Specifications

  • Bulletin Number: PB1
  • Material: Steel
  • Model Code: 57860
  • Ship Wt. Std. Pkg. (lbs): 14.0
  • Interchangeable: False
  • Finish: Painted Steel
  • Catalog Number: E10PB
  • A in.: 24.75
  • B in.: 3.25
  • C in.: 2.75
  • Gauge: 14
  • J in.: 2.31
  • X in.: 1.73
  • Number of Holes: 10
  • T in.: 3.00
  • Overall L x W in.: 25.75 x 3.47
  • Mounting G x H in.: 25.25 x 2.38
  • Y in.: 1.86
  • Hole Size: 30.5 mm
  • Standards: UL 508A Listed; Type 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997 || NEMA/EEMAC Type 12, 13 || CSA File Number 42186: Type 12 || IEC 60529, IP65

Categories

Overview

UPC 78351057860
GTiN 7.83511E+11
Finish Painted Steel
Width 3.25 in
Size 10PB x 30.5mm
Color Gray
Type 30.5-mm And 22.5-mm Pushbutton Enclosures,Type 12
Hole Size 30.5 mm
Material Steel
Number of Holes 10 Hole
Applications Controls and Drives
Depth 2.75 in
Height 24.75 in
Standard CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Family Brand Name Hoffman
Gauge 14 AWG
Sub Brand Hoffman
