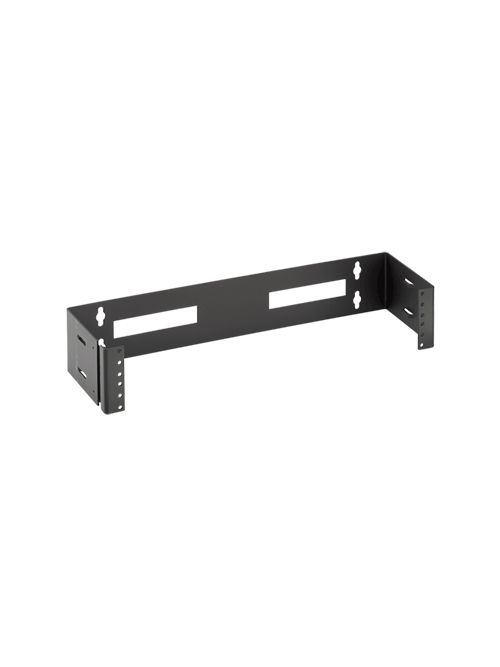

NVENT HOF E19HPM1U Hinged Panel 19i
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E19HPM1U
North Coast Part # 668671


  • Made of 12 gauge steel
  • EIA universal 5/8, 5/8, 1/2 in. spaced 12-24 tapped holes. EIA spacing provides 1.75 in. per rack unit.
  • Open design offers unrestricted airflow
  • Large cable exit holes on back surface
  • Keyhole mounting slots on 16-in. centers accommodate up to 3/8- in. dia. mounting fasteners (not supplied)
  • Heavy duty hinges are welded to frame
  • Hinge provided for every two rack unit spacing
  • One rack unit model has half-size hinge
  • Provides access to rear of equipment
  • 12-24 rack mounting screws (package of 20) included with assembly
  • Wall mounting hardware not included


  • Bulletin Number: DOFRW
  • Material: Steel
  • Model Code: 11001
  • Ship Wt. Std. Pkg. (lbs): 2.5
  • Interchangeable: False
  • Finish: Alum/Black
  • Catalog Number: E19HPM1U
  • Rack Units: 1
  • A in.: 1.75
  • Load Rating lb.: 25
  • Standards: UL 2416 Listed; File No. E230874 || cUL Listed per CSA C22.2 No. 182.4; File No. E230874 || EIA 310-D


UPC 78351011001
GTiN 00783510110017
Finish Low Gloss Polyester Powder Painted
Color RAL 9005 Black
Type Hinged
Material Steel
Applications For Smaller Network Equipment, Punch-Downs and Patch Panels in Areas Where Floor Space is at a Premium
Height 1-3/4 in
Standard CUL Listed Per CSA C22.2 No. 182.4; File No. E230874,EIA 310-D,UL 2416 Listed; File No. E230874
Family Brand Name Hoffman
Rack Unit 1
Sub Brand Hoffman
Width 20 in
Depth 6 in
