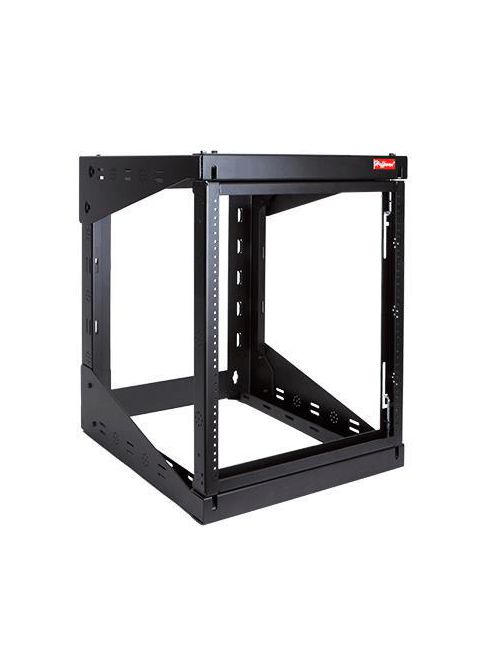

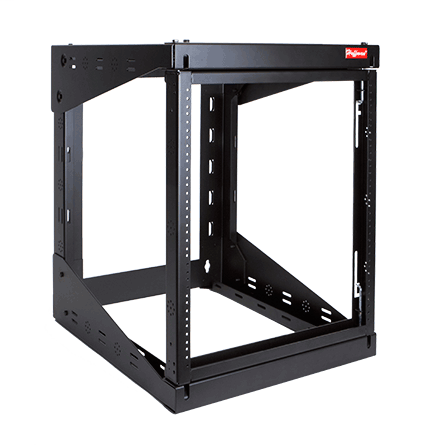

Hoffman E19SWM12U24 27.8 x 20.91 x 24.29 Inch 12-Unit Steel Swing-Out Wall Mount Cabinet Rack
$300.00/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E19SWM12U24
North Coast Part # 935525

Features

  • Designed to accommodate all standard 19-inch rack equipment
  • Easy, single-tool assembly reduces installation time and cost
  • Spring-load pivot pins provide for either left or right hinging; pins can be arranged in unlocked or locked position
  • Preassembled for fast, time-saving installation
  • Temporary mounting bracket allows for rapid, single-person wall installation
  • UL double lug ground holes provide easy adherence to local bonding and grounding codes
  • Cable tie down points, sized for up to 1-inch Velcro┬« straps, provided in horizontal and vertical positions in multiple locations
  • Standard 12- or 24-inch deep offering to accommodate various applications
  • Open design provides for maximum access to cables and equipment
  • 19-inch rack fasteners (Phillips head, pilot point, black) 12-24, quantity 20, included with rack
  • Smart packaging with hand-carrying holes allows for easy transportation
  • Wall section made of heavy gauge, cold rolled steel construction
  • Welded pivoting rack section constructed of steel
  • Tapped 12-24 holes per EIA Universal pattern standards (1/4-5/8-5/8-1/4)

Accessories

  • Vertical Cable Managers
  • D-Ring Cable Manager
  • Blanking Panels
  • Grounding kits
  • PDUs
  • Shelves

Specifications

  • Bulletin Number: DOFRW
  • Material: Steel
  • Model Code: 26163
  • Ship Wt. Std. Pkg. (lbs): 68.0
  • Interchangeable: False
  • Catalog Number: E19SWM12U24
  • A in.: 27.795
  • B in.: 20.905
  • C in.: 24.291
  • Rack Units: 12
  • F in.: 21.24
  • G in.: 22.30
  • Vertical Cable Manager Accessory: E19C12U
  • Standards: UL 2416 Listed; File Number E230874 || Rated to 100 lbs. with a 4X safety factor || EIA 310-D

Overview

UPC 78351026163
GTiN 00783510261634
Finish Black
Width 20.905 in
Color Black
Type VERSARACK
Material Steel
Applications VERSARACK is used for wall mounting and securing 19-inch rack equipment for Telecommunication Rooms and other locations. The rack provides for either left or right hinging to accommodate a variety of applications. These open frame racks are ideal for high-density cabling application. VERSARACK is ideal for IDFs (Intermediate Distribution Frames), remote 19-inch rack equipment, building automation, security and many other applications.
Depth 24.291 in
Height 27.795 in
Standard File Number E230874,EIA 310-D,Rated To 100 Lbs. With A 4X Safety Factor,UL 1863 Listed
Family Brand Name Hoffman
Rack Unit 12
Sub Brand Hoffman
