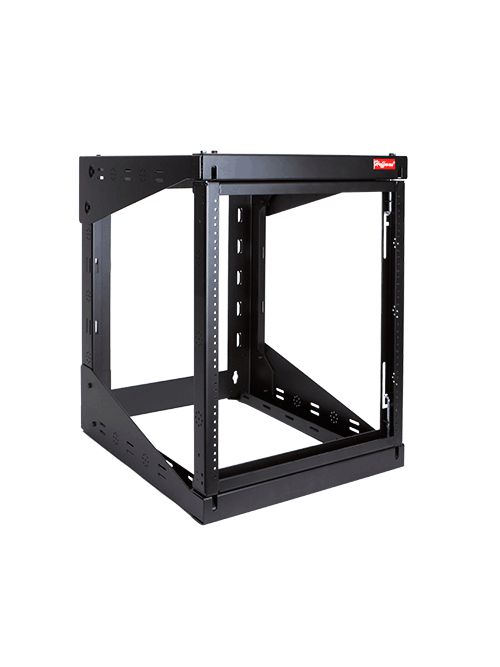

NVENT HOF E19SWM20U12 Swing Out Rac
Product image thumbnail 0
Product image thumbnail 1
$346.59/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E19SWM20U12
North Coast Part # 1095799

Features

  • Designed to accommodate all standard 19-inch rack equipment
  • Easy, single-tool assembly reduces installation time and cost
  • Spring-load pivot pins provide for either left or right hinging; pins can be arranged in unlocked or locked position
  • Preassembled for fast, time-saving installation
  • Temporary mounting bracket allows for rapid, single-person wall installation
  • UL double lug ground holes provide easy adherence to local bonding and grounding codes
  • Cable tie down points, sized for up to 1-inch Velcro┬« straps, provided in horizontal and vertical positions in multiple locations
  • Standard 12- or 24-inch deep offering to accommodate various applications
  • Open design provides for maximum access to cables and equipment
  • Smart packaging with hand-carrying holes allows for easy transportation

Specifications

  • Height (H): 1,062 millimetre
  • Width (W): 531 millimetre
  • Depth (D): 312 millimetre
  • Material: Mild Steel
  • Rack Units: 20
  • Vertical Cable Manager Accessory: E19C20U
  • Modification Services: Yes
  • Color: Jet Black
  • Color Code: RAL 9005
  • Finish: Powder Coated
  • Thickness (T): 2.66 millimetre

Related Products

Accessory

  • EVKIT

Overview

UPC 78351026164
GTiN 00783510261641
Finish Powder Coated
Width 20.905 in
Color Black
Type Rack and Cabinet Accessories
Material Steel
Applications Networking, Storage and Data Center
Depth 12.283 in
Height 41.811 in
Standard EIA 310-D,File Number E230874,Rated To 100 Lbs. With A 4X Safety Factor,UL 1863 Listed
Family Brand Name Hoffman
Rack Unit 20
Sub Brand VersaRack
Thickness 2.66 Millimetre mm
