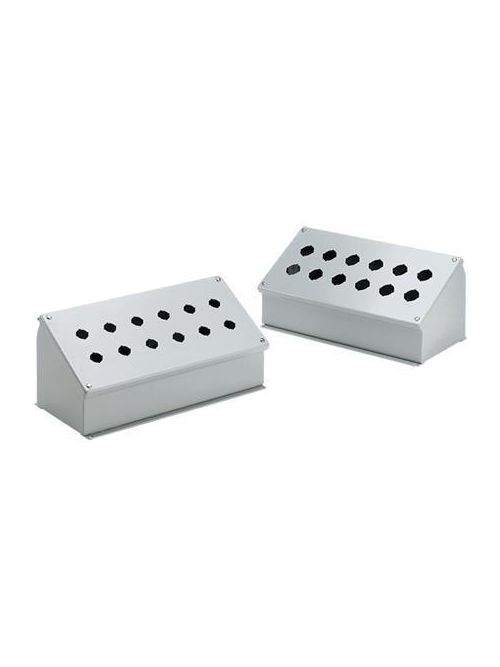

Hoffman E25PBA 14 x 13 x 10.12 Inch Gray 14 Gauge Steel NEMA 12 Push Button Enclosure
Product image thumbnail 0
Product image thumbnail 1
$538.35/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E25PBA
North Coast Part # 598835

Features

  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Grounding stud on body
  • Bonding provision on cover
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 7.25 x 6.25 x 6.75 in. (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes

Specifications

  • Height (H): 356 millimetre
  • Width (W): 330 millimetre
  • Depth (D): 257 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Hole Size: 30.5 mm millimetre
  • Hole Quantity: 25
  • Mounting (G x H): 333 x 308 millimetre
  • Overall Dimensions (L x W): 346 x 336 millimetre
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP65
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T): 1.9 millimetre

Overview

UPC 78351058640
GTiN 00783510586409
Finish Powder Coated
Width 13 in
Size 25PB x 30.5mm
Color Gray
Type Pushbutton Enclosures
Hole Size 30.5 mm
Material Steel
Number of Holes 25 Hole
Applications Controls and Drives
Depth 10.12 in
Height 14 in
Standard CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Family Brand Name Hoffman
Sub Brand Hoffman
Thickness 1.9 Millimetre mm
