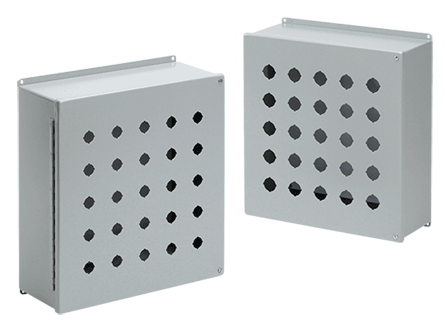

Hoffman E25PBY25M 16 x 15 x 6 Inch Gray 14 Gauge Steel NEMA 12 Push Button Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$610.14/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E25PBY25M
North Coast Part # 1165698

Features

  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Continuous hinge
  • Factory stamped 4-way pushbutton holes
  • Oil-resistant gasket
  • Removable 14 gauge panel included, supported by weldnuts
  • Bonding provision on cover
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes

Specifications

  • Height (H) (inch): 16
  • Height (H) (millimetre): 406
  • Width (W) (inch): 15
  • Width (W) (millimetre): 381
  • Depth (D) (inch): 6
  • Depth (D) (millimetre): 152
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Hole Size (millimetre): 22.5 mm
  • Hole Quantity: 25
  • Panel Size (D x E) (inch): 14.00 x 13.00
  • Mounting (G x H) (inch): 16.50 x 14.12
  • Mounting (G x H) (millimetre): 419 x 359
  • Panel Size (D x E) (millimetre): 356 x 330
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP65
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Number of Holes: 25
  • Size: 25PB x 22.5mm

Categories

Overview

UPC 78351013058
Item Long Description Extra-Large Pushbutton Enclosures with Panels are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with 2.50-in. (64-mm) center-to-center of pushbutton holes.
GTiN 00783510130589
Finish Powder Coated
Width 15 in
Size 25PB x 22.5mm
Color Gray
Type 25-Hole, Extra-Large
Hole Size 22.5 mm
Material Steel
Number of Holes 25 Hole
Applications For Push Buttons and Switches
Depth 152 mm
Height 16 in
Standard CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Family Brand Name Hoffman
Used With 22.5 mm Push Button
Sub Brand Hoffman
Thickness 1.9 mm
