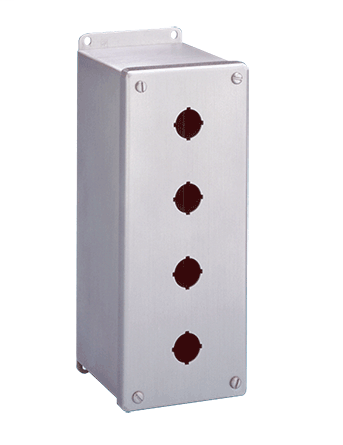

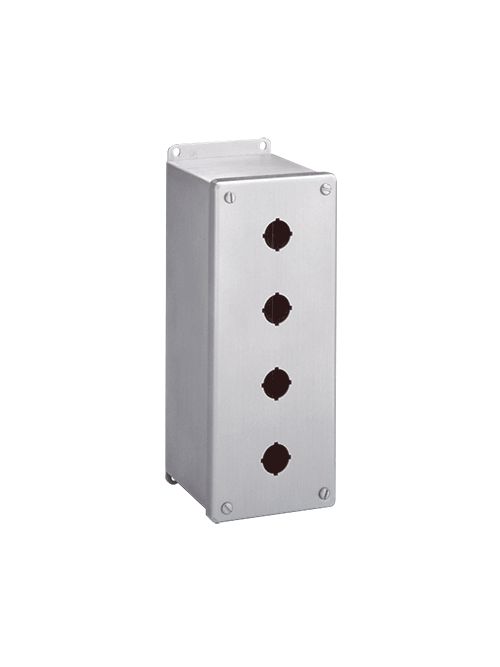

Hoffman E2PBGXSS 6 x 4 x 4.75 Inch 304 Stainless Steel NEMA 4X Push Button Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$506.25/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E2PBGXSS
North Coast Part # 68263

Features

  • Extra-deep design accommodates additional contact blocks for pushbuttons.
  • Seams continuously welded and ground smooth
  • Captivated stainless steel cover screws thread into sealed wells
  • Enclosures 8.50 x 4.00 x 4.75 in. (216 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • Bonding provision on door; grounding nut on body
  • Oil-resistant gasket

Specifications

  • Height (H) (inch): 6
  • Height (H) (millimetre): 152
  • Width (W) (inch): 4
  • Width (W) (millimetre): 102
  • Depth (D) (inch): 4.75
  • Depth (D) (millimetre): 121
  • Protection Rating: NEMA Type 12
  • Material: Stainless Steel 304
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Overall Dimensions (L x W) (inch): 7.00 x 4.22
  • Overall Dimensions (L x W) (millimetre): 178 x 107
  • Mounting (G x H) (inch): 6.50 x 3.13
  • Mounting (G x H) (millimetre): 165 x 80
  • Hole Quantity: 2
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Body Thickness (gauge): 14
  • Body Thickness (millimetre): 1.98
  • Color: Unpainted
  • Door Thickness (gauge): 16
  • Door Thickness (millimetre): 1.59
  • Finish: Brushed #4
  • Size: 2PB x 22.5mm

Categories

Overview

UPC 78351060280
Item Long Description Designed to house 22.5-mm oil-tight pushbuttons, switches and pilot lights. Enclosures provide protection against dust, dirt, oil and water. Extra-deep design accommodates additional contact blocks for pushbuttons.
GTiN 00783510602802
Width 102 mm
Size 2PB x 22.5mm
Color Stainless Steel
Type 2 Holes
Material Stainless Steel
Number of Holes 2 Hole
Applications Provide Protection Against Dirt, Dust, Oil and Water
Depth 121 mm
Height 152 mm
Standard 12,13,4X,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP66,NEMA/EEMAC Type 4X,Type 4,UL 508A Listed
Family Brand Name Hoffman
Cover Gauge 16
Body Gauge 14
Cover Type Screw
Used With 22.5 mm Oil-Tight Pushbuttons, Switches and Pilot Lights
Sub Brand Hoffman
Finish Brushed
Body Thickness 1.98 mm
