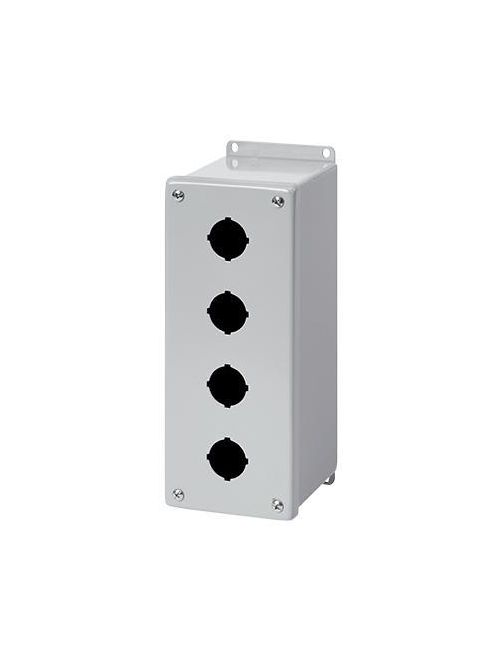

NVENT HOF E2PBXM4 X Deep 22.5mm 2 h
Product image thumbnail 0
Product image thumbnail 1
$165.88/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E2PBXM4
North Coast Part # 1280734

Features

  • 16 or 14 gauge steel
  • Seams continuously welded and ground smooth
  • Captivated stainless steel cover screws thread into sealed wells
  • Grounding stud on body
  • Bonding provision on cover
  • High-performance polyurethane gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 6.00 x 4.00 x 5.00 in. (152 x 102 x 127 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • 30.5-mm or 22.5-mm size holes
  • External wall-mounting brackets

Accessories

  • Industrial Corrosion Inhibitors
  • Hol-Sealers Hole Seals
  • Tamper-Resistant Screws

Specifications

  • Bulletin Number: PB1
  • Material: Painted steel
  • Model Code: 30415
  • Interchangeable: False
  • Finish: Painted steel
  • Catalog Number: E2PBXM4
  • A in.: 6
  • B in.: 4
  • C in.: 4.75
  • Hole Size: 22.5 mm
  • Number of Holes: 2
  • Gauge: 14
  • Mounting G x H in.: 6.50 x 3.12
  • Overall L x W in.: 7.00 x 4.22
  • T in.: 3.75
  • Y in.: 1.98
  • Standards: UL 508A Listed; Type 4, 12; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. E61997 || NEMA/EEMAC Type 4, 12 || CSA File Number 42186: Type 4, 12 || IEC 60529, IP66

Overview

UPC 78351030415
GTiN 00783510304157
Finish Painted Steel
Width 4 in
Hole Size 22.5 mm
Material Painted Steel
Number of Holes 2 Hole
Depth 4.75 in
Height 6 in
Standard CSA File Number 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12,UL 508A Listed; Type 4, 12; File No. E61997
Family Brand Name Hoffman
Gauge 14 AWG
Type Pushbutton Enclosures
Applications Controls and Drives
