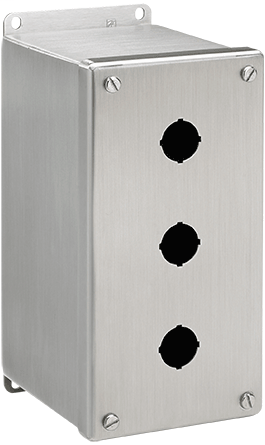

Hoffman E4PBXSS 10 x 4 x 4.75 Inch 304 Stainless Steel NEMA 4X Push Button Enclosure
$592.52/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E4PBXSS
North Coast Part # 14816

Features

  • 14 gauge bodies, 16 gauge covers; Type 304 or Type 316 stainless steel
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on door; grounding nut on body
  • 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
  • Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • Oil-resistant gasket

Accessories

  • Industrial Corrosion Inhibitors, Hol-Sealers Hole Seals, Tamper-Resistant Screws

Specifications

  • Bulletin Number: PB1S
  • Model Code: 59380
  • Ship Wt. Std. Pkg. (lbs): 26.64
  • Interchangeable: False
  • Catalog Number: E4PBXSS
  • A in.: 10
  • B in.: 4
  • C in.: 4.75
  • Gauge: 14
  • Number of Holes: 4
  • T in.: 3.75
  • Overall L x W in.: 11.00 x 4.22
  • Mounting G x H in.: 10.50 x 3.12
  • Y in.: 1.73
  • Stainless Steel Type: 304
  • Standards: UL 508A Listed; Type 4, 4X, 12; File Number E61997 || cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12; File Number E61997 || NEMA/EEMAC Type 4X, 12, 13 || CSA File Number 42186: Type 4, 4X, 12 || IEC 60529, IP66

Categories

Overview

UPC 78351059380
GTiN 7.83511E+11
Width 102 mm
Size 4PB x 30.5mm
Color Stainless Steel
Type 4 Holes
Material Stainless Steel
Number of Holes 4 Hole
Applications Provide Protection Against Dirt, Dust, Oil and Water
Depth 121 mm
Height 254 mm
Standard 12,13,4X,CSA File Number 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File Number E61997,IEC 60529,IP66,NEMA/EEMAC Type 4X,Type 4,UL 508A Listed
Family Brand Name Hoffman
Gauge 14
Cover Type Screw
Used With 30.5 mm Oil-Tight Pushbuttons, Switches and Pilot Lights
Sub Brand Hoffman
