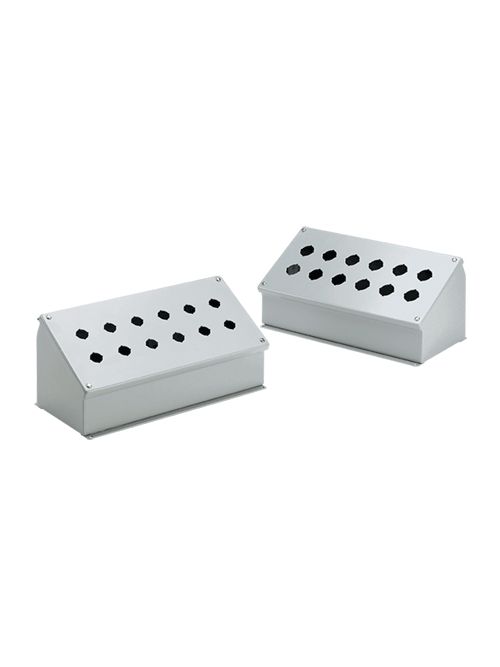

Hoffman E4SPBAM 7.25 x 6.25 x 6.75 Inch Gray 14 Gauge Steel NEMA 12 Push Button Enclosure
Product image thumbnail 0
Product image thumbnail 1
$235.24/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E4SPBAM
North Coast Part # 424882

Features

  • 14 gauge steel
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Grounding stud on body
  • Bonding provision on cover
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 7.25 x 6.25 x 6.75 in. (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes

Accessories

  • Industrial Corrosion Inhibitors
  • Hol-Sealers Hole Seals
  • Tamper-Resistant Screws

Specifications

  • Bulletin Number: PB1
  • Material: Steel
  • Model Code: 13068
  • Ship Wt. Std. Pkg. (lbs): 6.0
  • Interchangeable: False
  • Finish: ANSI 61
  • Catalog Number: E4SPBAM
  • A in.: 7.25
  • B in.: 6.25
  • C in.: 6.75
  • N in.: 6.78
  • X in.: 2.11
  • T in.: 6.00
  • P in.: 5.22
  • Overall L x W in.: 7.78 x 6.47
  • Mounting G x H in.: 7.28 x 5.38
  • Y in.: 2.61
  • Hole Size: 22.5 mm
  • No. of Holes: 4
  • Standards: UL 508A Listed; Type 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997 || NEMA/EEMAC Type 12, 13 || CSA File Number 42186: Type 12 || IEC 60529, IP65

Overview

UPC 78351013068
GTiN 00783510130688
Finish ANSI 61
Width 184 mm
Size 4PB x 22.5mm
Color Gray
Type 4-Hole, Sloped-Front
Hole Size 22.5 mm
Material Steel
Number of Holes 4 Hole
Applications For Push Buttons and Switches
Mounting Type Surface
Depth 171 mm
Height 159 mm
Standard CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Family Brand Name Hoffman
Used With 22.5 mm Push Button
Sub Brand Hoffman
