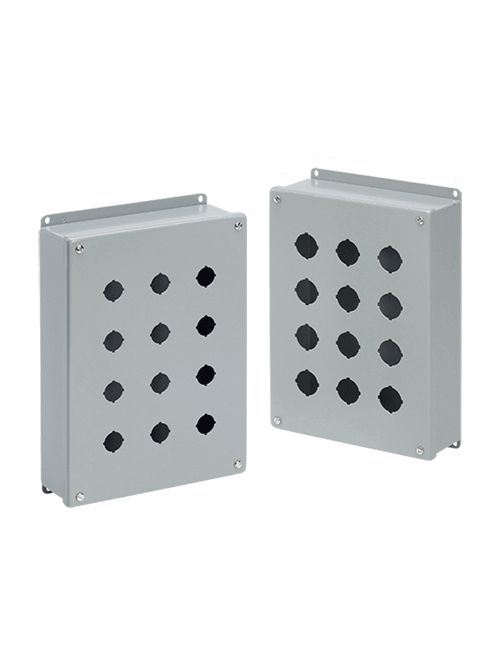

Hoffman E5PB 12.5 x 3.25 x 2.75 Inch Gray 14 Gauge Steel NEMA 12 Push Button Enclosure
Product image thumbnail 0
Product image thumbnail 1
$173.42/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E5PB
North Coast Part # 152119

Features

  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes

Specifications

  • Height (H): 318 millimetre
  • Width (W): 83 millimetre
  • Depth (D): 70 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Hole Quantity: 5
  • Overall Dimensions (L x W): 343 x 88 millimetre
  • Mounting (G x H): 330 x 60 millimetre
  • Hole Size: 30.5 mm millimetre
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP65
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T): 1.9 millimetre

Overview

UPC 78351057810
GTiN 00783510578107
Finish Powder Coated
Width 3.25 in
Size 5PB x 30.5mm
Color Gray
Type 5-Hole
Hole Size 30.5 mm
Material Steel
Number of Holes 5 Hole
Applications For Push Buttons and Switches
Depth 2.75 in
Height 12.50 in
Standard CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Family Brand Name Hoffman
Gauge 14 AWG
Used With 30.5 mm Push Button
Sub Brand Hoffman
Thickness 1.9 Millimetre mm
