Hoffman E8PBA 7.25 x 10.75 x 6.75 Inch Gray 14 Gauge Steel NEMA 12 Push Button Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$340.51/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E8PBA
North Coast Part # 64178

Features

  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Grounding stud on body
  • Bonding provision on cover
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 7.25 x 6.25 x 6.75 in. (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes

Specifications

  • Height (H) (inch): 7.25
  • Height (H) (millimetre): 184
  • Width (W) (inch): 10.75
  • Width (W) (millimetre): 273
  • Depth (D) (inch): 6.75
  • Depth (D) (millimetre): 171
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Hole Size (millimetre): 30.5 mm
  • Hole Quantity: 8
  • Mounting (G x H) (inch): 7.28 x 9.88
  • Mounting (G x H) (millimetre): 185 x 251
  • Overall Dimensions (L x W) (inch): 7.78 x 10.97
  • Overall Dimensions (L x W) (millimetre): 198 x 279
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP65
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Number of Holes: 8
  • Size: 8PB x 30.5mm

Categories

Overview

UPC 78351058580

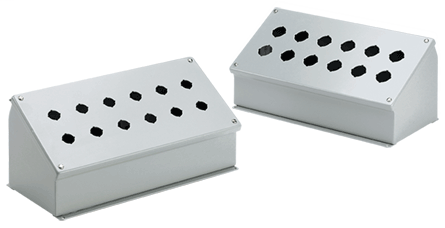

Item Long Description These Sloped Front Pushbutton Enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches where slanted control surfaces are desired.
GTiN 00783510585808
Finish Powder Coated
Width 10.75 in
Size 8PB x 30.5mm
Color Gray
Type 8-Hole, Sloped-Front
Hole Size 30.5 mm
Material Steel
Number of Holes 8 Hole
Applications For Push Buttons and Switches
Depth 6.75 in
Height 7.25 in
Standard CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Family Brand Name Hoffman
Used With 30.5 mm Push Button
Sub Brand Hoffman
Thickness 1.9 mm
