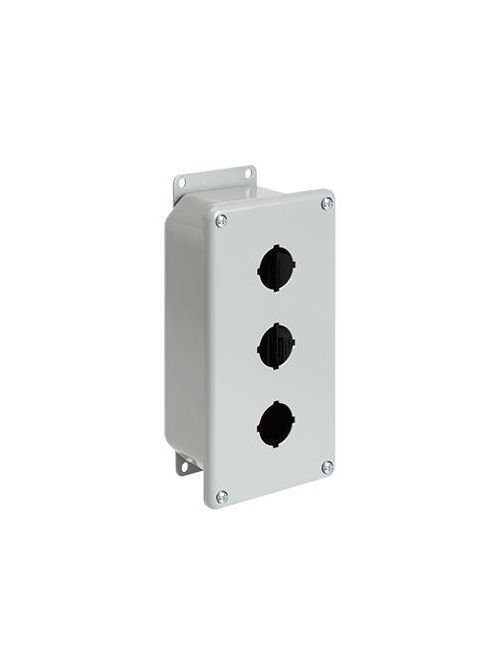

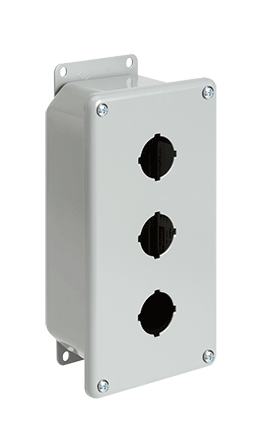

Hoffman E9PBGXM 8.5 x 7.25 x 4.25 Inch Gray 14 Gauge Steel NEMA 12 Push Button Enclosure
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$255.77/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E9PBGXM
North Coast Part # 1004489

Features

  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding nut in body of enclosure
  • Oil-resistant gasket
  • Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during installation
  • External welded-on mounting brackets for easy installation
  • Factory stamped 4-way pushbutton holes
  • 22.5-mm size holes

Specifications

  • Height (H) (inch): 8.5
  • Height (H) (millimetre): 216
  • Width (W) (inch): 7.25
  • Width (W) (millimetre): 184
  • Depth (D) (inch): 4.25
  • Depth (D) (millimetre): 108
  • Protection Rating: NEMA Type 12
  • Material: Mild Steel
  • NEMA Rating: 12 Indoor, dust-resistant
  • Hole Quantity: 9
  • Mounting (G x H) (inch): 9.00 x 5.63
  • Mounting (G x H) (millimetre): 229 x 162
  • Overall Dimensions (L x W) (inch): 9.50 x 7.47
  • Overall Dimensions (L x W) (millimetre): 241 x 190
  • Modification Services: Yes
  • Type Number: Type 13
  • IP Rating: IP65
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness (T) (gauge): 14
  • Thickness (T) (millimetre): 1.9
  • Number of Holes: 9
  • Size: 9PB x 22.5mm

Categories

Overview

UPC 78351013533
Item Long Description Designed for pushbuttons and switches, the extra depth of these enclosures accommodates additional pushbutton contact blocks.
GTiN 00783510135331
Finish Powder Coated
Width 7.25 in
Size 9PB x 22.5mm
Color Gray
Type Pushbutton Enclosures
Material Steel
Number of Holes 9 Hole
Applications Controls and Drives
Depth 108 mm
Height 8.5 in
Standard CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Family Brand Name Hoffman
Sub Brand Hoffman
Thickness 1.9 mm
