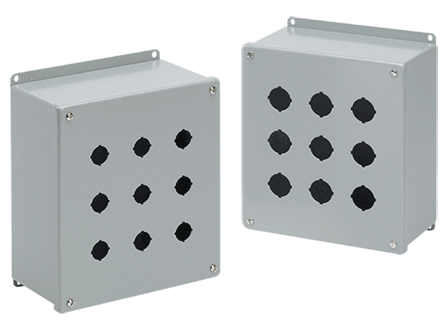

Hoffman E9PBX 9.5 x 8.25 x 4.75 Inch Gray 14 Gauge Steel NEMA 12 Push Button Enclosure
$256.36/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # E9PBX
North Coast Part # 664286

Features

  • 16 or 14 gauge steel
  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes

Accessories

  • Industrial Corrosion Inhibitors
  • Hol-Sealers Hole Seals
  • Tamper-Resistant Screws

Specifications

  • Bulletin Number: PB1
  • Material: Painted steel
  • Model Code: 58180
  • Ship Wt. Std. Pkg. (lbs): 15.54
  • Interchangeable: False
  • Finish: Painted steel
  • Catalog Number: E9PBX
  • A in.: 9.5
  • B in.: 8.25
  • C in.: 4.75
  • Gauge: 14
  • Number of Holes: 9
  • T in.: 8.25
  • Overall L x W in.: 10.50 x 8.72
  • Mounting G x H in.: 10.00 x 7.62
  • Y in.: 2.61
  • Hole Size: 30.5 mm
  • Standards: UL 508A Listed; Type 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E61997 || NEMA/EEMAC Type 12, 13 || CSA File Number 42186: Type 12 || IEC 60529, IP65

Categories

Overview

UPC 78351058180
GTiN 00783510581800
Finish Painted Steel
Width 8.25 in
Size 9PB x 30.5mm
Color Gray
Type Pushbutton Enclosures
Hole Size 30.5 mm
Material Painted Steel
Number of Holes 9 Hole
Applications Controls and Drives
Depth 4.75 in
Height 9.5 in
Standard CSA File Number 42186: Type 12,CUL Listed Per CSA C22.2 No. 94; Type 12, 13; File No. E61997,IEC 60529, IP65,NEMA/EEMAC Type 12, 13,UL 508A Listed; Type 12, 13; File No. E61997
Family Brand Name Hoffman
Gauge 14 AWG
Sub Brand Hoffman
