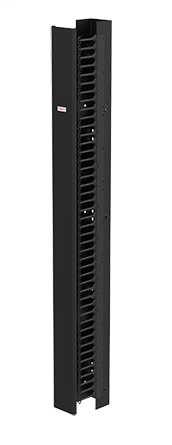

Hoffman EC6S7 84 x 6 x 11.5 Inch Black Single Sided Vertical Rack Cable Manager
$467.05/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # EC6S7
North Coast Part # 828644

Features

  • Universal mounting pattern for 2- and 4-post open-frame racks
  • Easy-to-install with self-aligning, self-captivating carriage bolts for single-sided attachment
  • Arrowhead supporting fingers provide easy insertion, removal and alignment of Cat 5e, 6, 6A and other cable types
  • Deep cable depth provides smooth transition of cables from vertical to horizontal positions
  • Large feed-through holes and pre-scored grommets provide cable feed from front to back of cable manager
  • Unobstructed cable access for all rack unit locations
  • Extra deep cable channel for maximum cable density has multiple cable tie-down points
  • Standard front cover, with field installed snap hinges, provides cable access from right, left or neutral
  • Double-sided models with supporting fingers include front central latching cover and rear snap-on cover
  • Double-sided models with posts and gates support and contain cables. Five posts and gates are included; additional sets are available as accessories
  • Posts snap into prepunched holes in the back of the cable manager
  • Gates snap onto posts, open from left or right as needed and swing 280ยบ for cable access. Posts can be used alone as slack spools to control long patch cords
  • The single-sided cable manager can be upgraded with CableTek Post and Gates Kits
  • CableTek Rear Cover is sold separately as an accessory for vertical cable managers with posts and gates, and is fully fieldinstallable; no tools needed
  • Easy-to-remove front cover is multi-formed, light-weight aluminum with high-strength, black composite snap-on hinge points and hinges right, left or neutral
  • Cable channel constructed of multi-formed 14 gauge steel
  • Arrowhead supporting fingers are high-strength, black composite with all edges rounded
  • Rear posts and gates on double-sided models are high-strength, black composite with all edges rounded

Specifications

  • Bulletin Number: DOFRY
  • Material: Steel
  • Model Code: 19176
  • Ship Wt. Std. Pkg. (lbs): 41.5
  • Interchangeable: False
  • Catalog Number: EC6S7
  • A in.: 84
  • B in.: 6
  • C in.: 11.5
  • Description: Single-Sided
  • Width: 6
  • RU: 45

Categories

Overview

UPC 78351019176
GTiN 00783510191764
Finish Black
Width 6 in
Color Black
Type Cable and Power Management
Material Steel
Applications Networking, Storage and Data Center
Depth 11.5 in
Height 84 in
Family Brand Name Hoffman
Sub Brand CableTek
