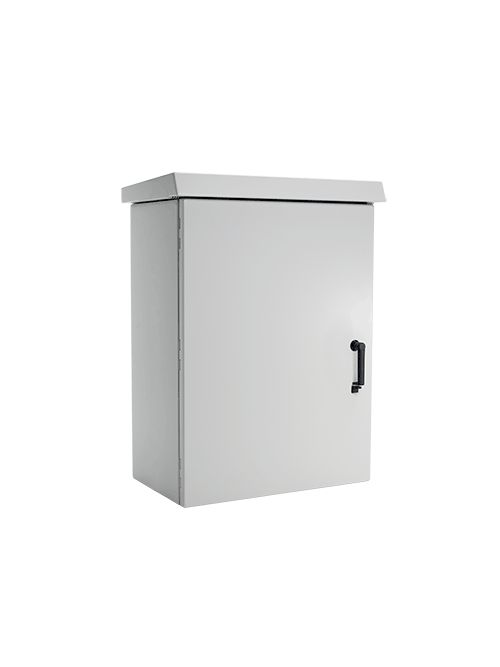

NVENT ECL606050PB COMLINE 60x60x50
$4,385.20/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ECL606050PB
North Coast Part # 1834637

Features

  • Rack angles have EIA universal standard square hole spacing
  • Eighth-inch thick, depending on cabinet size
  • Seams continuously welded and ground smooth for a finished appearance
  • Body includes studs for ground bar and rear mounting studs for wood panel
  • Solar shield helps keep enclosure interior cool when cabinet is installed outdoors and directs liquids away from cabinet opening; can be removed for indoor installations
  • Foam-in-place gasket provides environmental seal
  • Padlocking L-Handle provides a tight, secure door seal
  • Doorstop holds door in place during service for easier and faster maintenance
  • Heavy-duty hinged door is easily removed to facilitate equipment installation and removal. Maximum door load 50 lb. (22.7 kg)
  • Rack angles adjustable front-to-rear of cabinet
  • Gland plates available with cutouts that fit Hoffman T15, T20 and CR23 air conditioners and Hoffman XR20 and XR29 heat exchangers (Indoor use only)
  • Radius corners on cabinet eliminate sharp edges
  • Stainless steel fasteners resist corrosion to maintain professional appearance
  • Pole mounting kits available for all sizes
  • Pad mounting plinth available for 600mm deep cabinets
  • Battery compartment has front vented captivated door.
  • Note – SR20 and SR2 are for indoor use only.

Specifications

  • Bulletin Number: DCOM
  • Material: Aluminum
  • Model Code: 21146
  • Ship Wt. Std. Pkg. (lbs): 102.0
  • Interchangeable: False
  • Catalog Number: ECL606050PB
  • A in.: 38.62
  • B in.: 23.62
  • C in.: 19.69
  • Rack Units: 12
  • Description: With battery compartment
  • Standards: UL 508A Listed; Type 3, 3R, 4, 4X, 12; File No. E61997 || CSA: Type 3, 3R, 4, 4X, 12 || NEMA/EEMAC Type 3, 3R, 4, 4X, 12 || EC60529, IP66 || Designed to meet Telcordia NEBS™ GR-487, GR-63 and IEC 48D || EIA 310-D with 19 in. spacing for rack equipment || Meets BICSI TDMM, Tenth Edition, Chapter 7, Telecommunication Enclosures (TE) || Cabinet is RoHS compliant ||

Categories

Overview

UPC 78351021146
GTiN 7.8351E+11
Finish Lt Gray
Width 23.62 in
Color Gray
Type Outside Plant Products
Material Aluminum
Applications Datacom and Telecom Equipment
Depth 19.69 in
Height 38.62 in
Standard 12,3R,4,4X,CSA: Type 3,Designed To Meet Telcordia NEBS GR-487,EC60529,EIA 310-D With 19 In. Spacing For Rack Equipment,File No. E61997,GR-63 And IEC 48D,IP66,Meets BICSI,NEMA/EEMAC Type 3,Type 3,UL 508A Listed
Family Brand Name Hoffman
Rack Unit 12
Sub Brand ComLine
