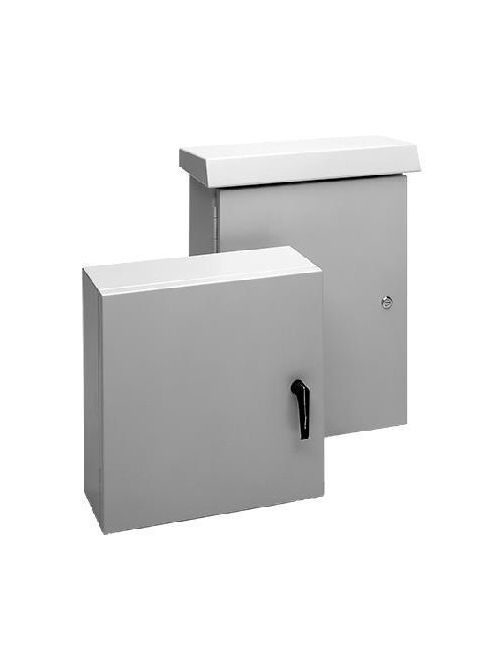

Hoffman ECL806020CH 31.5 x 23.62 x 7.87 Inch Aluminum NEMA 4X Enclosure Hinge Cover
Product image thumbnail 0
Product image thumbnail 1
$2,942.07/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ECL806020CH
North Coast Part # 674734

Features

  • Bonding provision on door; ground stud on body
  • Seams continuously welded and ground smooth for a finished appearance
  • Foam-in-place seamless gasket for superior protection against dust and liquid ingress
  • 1- or 3-point latching (screwdriver slot), depending on door size
  • Optional door stop/wind latch holds door in place during service
  • Two door/hinge styles available
  • Easily removable door with hidden hinge and retaineing hinge pin

Specifications

  • Height (H): 800 millimetre
  • Width (W): 600 millimetre
  • Depth (D): 200 millimetre
  • Protection Rating: NEMA Type 12
  • Material: Aluminum
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Door Thickness: 0.08 inch
  • Latch Points: 3
  • Package Weight: 27 pound
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Body Thickness: 2 millimetre
  • Color: Light Gray
  • Color Code: RAL 7035
  • Finish: Powder Coated

Related Products

Accessory

  • ESSH6020
  • EP8060AL
  • ERA198TH
  • EDSK
  • ELHP
  • EPL4
  • DL36
  • AN1032
  • ANM5
  • CPMK24
  • AS1032
  • ASM5
  • CMFK
  • CMFKSS
  • CMTGFT
  • EMB1

Overview

UPC 78351038019
GTiN 00783510380199
Finish Powder Coated
Width 23.62 in
Color Gray
Type Outside Plant Products
Material Aluminum
Applications Datacom and Telecom Equipment
Depth 7.87 in
Height 31.5 in
Family Brand Name Hoffman
Sub Brand ComLine
