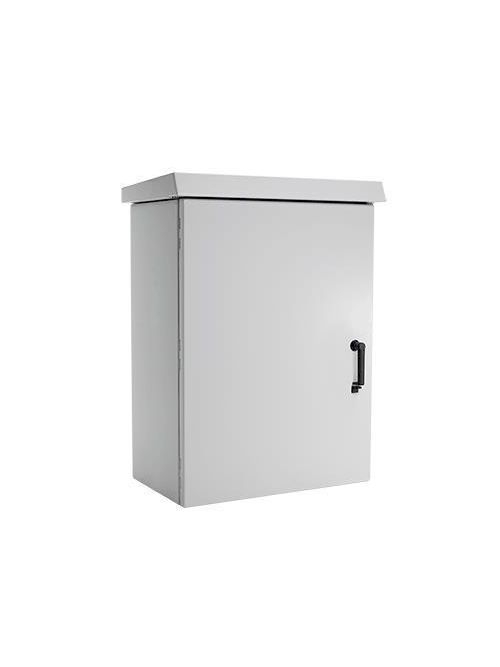

Hoffman ECL906050P 35.43 x 23.62 x 19.68 Inch Gray Aluminum NEMA 4X Enclosure Wall Mount Cabinet
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4,996.69/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ECL906050P
North Coast Part # 682304

Features

  • Solar shield helps keep enclosure interior cool when cabinet is installed outdoors and directs liquids away from cabinet opening; can be removed for indoor installations
  • Foam-in-place gasket provides environmental seal
  • Padlocking L-Handle provides a tight, secure door seal
  • Doorstop holds door in place during service for easier and faster maintenance
  • Heavy-duty hinged door is easily removed to facilitate equipment installation and removal; maximum door load 50 lb. (22.7 kg)
  • Rack angles adjustable front-to-rear of cabinet
  • Gland plates available with cutouts that fit HOFFMAN T15, T20 and CR23 air conditioners and HOFFMAN XR20 and XR29 heat exchangers (Indoor use only)
  • Radius corners on cabinet eliminate sharp edges
  • Stainless steel fasteners resist corrosion to maintain professional appearance
  • Pole mounting kits available for all sizes

Specifications

  • Height (H) (inch): 35.43
  • Height (H) (millimetre): 900
  • Width (W) (inch): 23.62
  • Width (W) (millimetre): 600
  • Depth (D) (inch): 19.68
  • Depth (D) (millimetre): 500
  • Protection Rating: NEMA Type 12
  • Material: Aluminum
  • NEMA Rating: 4X Watertight, corrosion-resistant
  • Rack Units: 18
  • Modification Services: Yes
  • Type Number: Type 3R
  • IP Rating: IP66
  • Body Thickness (inch): 0.125
  • Body Thickness (millimetre): 3
  • Color: Light Gray
  • Color Code: RAL 7035
  • Door Thickness (inch): 0.1
  • Door Thickness (millimetre): 2.5
  • Finish: Powder Coated
  • Sub Brand: ComLine
  • Height: 35.43 in
  • Width: 23.62 in
  • Depth: 19.68 in

Related Products

Accessory

  • EP8060AL
  • E90P60W
  • ERA199S
  • EPMC9
  • EGPS2
  • EGPACT15
  • EGPACT20
  • EGPACCR23
  • EGPHX20
  • EGPHX29
  • ELHP
  • EPL4
  • DL36
  • AN1032
  • ANM5
  • AS1032
  • ASM5
  • CMFK
  • CMFKSS
  • CMTGFT
  • EMB1
  • EGBB1
  • EGBB2

Overview

UPC 78351017027
Item Long Description A complete, off-the-shelf package for 19-inch rack equipment, lightweight ComLine OSP Wall-Mount Cabinets are constructed of corrosion-resistant aluminum with a foam-in-place gasket that secures and protects sensitive equipment in outdoor applications. Available with or without back-up battery compartment.
GTiN 00783510170271
Width 23.62 in
Type Outside Plant Products
Material Aluminum
Applications Datacom and Telecom Equipment
Depth 500 mm
Height 35.43 in
Standard 12,3R,4,4X,CSA: Type 3,Designed To Meet Telcordia NEBS GR-487,EC60529,EIA 310-D With 19 In. Spacing For Rack Equipment,File No. E61997,GR-63 And IEC 48D,IP66,Meets BICSI,NEMA/EEMAC Type 3,Type 3,UL 508A Listed
Family Brand Name Hoffman
Rack Unit 18
Sub Brand ComLine
Finish Powder Coated
Color Gray
Body Thickness 3 mm
