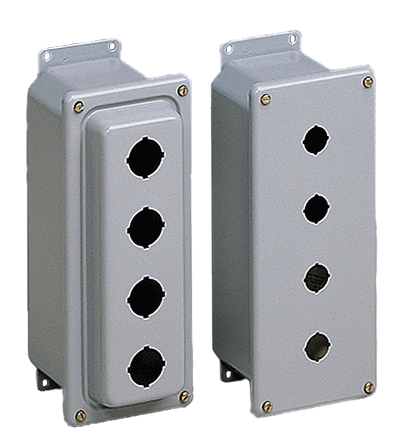

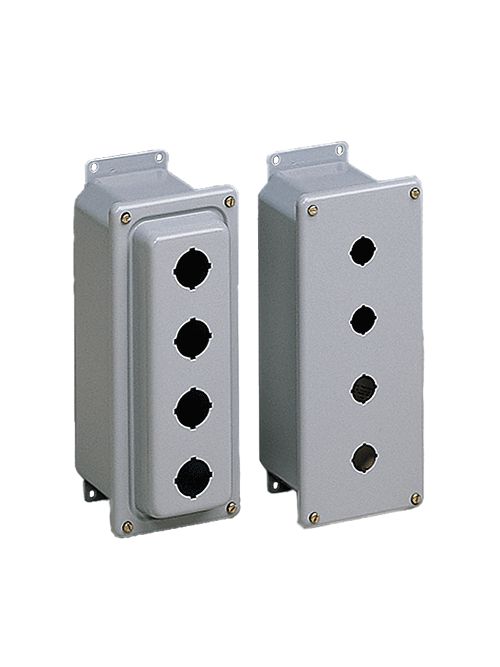

Hoffman ED2PBM 5.75 x 4 x 3.75 Inch Gray 16 Gauge Steel NEMA 4 Push Button Enclosure
$115.06/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ED2PBM
North Coast Part # 669687

Features

  • Drawn 16 gauge steel
  • No welded seams or sharp corners
  • Cover screws outside gasket sealing surface
  • Flat or domed flanged cover
  • Grounding stud on body
  • Bonding provision on cover
  • Oil-resistant gasket
  • External welded-on mounting brackets for easy installation
  • Factory stamped 4-way pushbutton holes
  • 30.5-mm or 22.5-mm size holes

Accessories

  • Industrial Corrosion Inhibitors
  • Hol-Sealers Hole Seals

Specifications

  • Bulletin Number: PB1
  • Material: Steel
  • Model Code: 57760
  • Ship Wt. Std. Pkg. (lbs): 8.72
  • Interchangeable: False
  • Finish: ANSI 61
  • Catalog Number: ED2PBM
  • A in.: 5.75
  • B in.: 4
  • C in.: 3.75
  • K in.: 3.75
  • L in.: 6.75
  • F in.: 3.00
  • S in.: 4.31
  • M in.: 6.25
  • W in.: 4.50
  • V in.: 3.98
  • Number of Holes: 2
  • T in.: 2.56
  • Mounting G x H in.: 6.25 x 2.38
  • Y in.: 2.00
  • Hole Size: 22.5 mm
  • Cover Type: Flat
  • Standards: UL 508A Listed; Type 4, 12, 13; File No. E61997 || cUL Listed per CSA C22.2 No. 94; Type 4, 12, 13; File No. E61997 || NEMA/EEMAC Type 4, 12, 13 || IEC 60529, IP66

Overview

UPC 78351057760
GTiN 00783510577605
Finish ANSI 61
Width 102 mm
Size 2PB x 22.5mm
Color Gray
Type 2-Hole
Hole Size 22.5 mm
Material Steel
Number of Holes 2
Applications Drawn Pushbutton Enclosures are designed to hold 30.5-mm or 22.5-mm 4-way pushbuttons and switches. These enclosures have no welded seams or sharp corners.
Depth 95 mm
Height 146 mm
Standard UL 508A Listed; Type 4, 12, 13; File No. E61997,CUL Listed Per CSA C22.2 No. 94; Type 4, 12, 13; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13
Family Brand Name Hoffman
Sub Brand Hoffman
