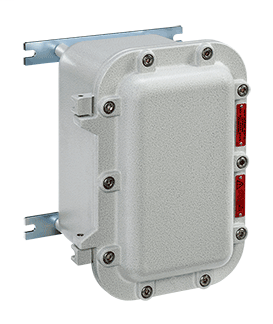

NVENT EJB6B Ex d Jctn Box 870x650x3

Features

• Low copper aluminum alloy and stainless steel bolts and screws for corrosion resistance Aluminum alloy passes the tests required by standards EN 60068-2-30 (hot/humid cycles) and EN 60068-2-11 (salt mist tests) • Internal mounting panel • Body and cover can be drilled and threaded according to customers’ specification
• Cast hinges for robust construction (except for EJB-55)
• High temperature-resistant silicone gasket provides IP66 / 67 rating
• Stainless steel bolts and screws
• Electrogalvanized steel mounting bracket
• Epoxy coating RAL 7035 (Light grey) coating
• Aluminum alloy passes the tests required by standards EN 60068-2-30 (hot/humid cycles) and EN 60068-2-11 (salt mist tests)
• Internal mounting panel
• Body and cover can be drilled and threaded according to customers’ specifications

Accessories

• Internal anti-condensation coating RAL 2004 (pure orange)
• External epoxy coating in different color (specify the RAL number)
• Breather Drain
• Round or rectangular windows on lid

Specifications

• Model Code: 28974
• Material: Aluminum
• Product Weight lbs.: 307.90
• Product Weight kg: 139.70
• Catalog Number: EJB6B
• A in.: 34.25
• B in.: 25.59
• C in.: 14.96
• X in.: 28.35
• Y in.: 19.69
• Z in.: 10.73
• Industry Standards: ATEX Directive 94/9/EC || EN 60079-0 || EN 60079-1 || EN 60079-31 || EN 60079-11 || EN 60079-26 || EN 60529 || EN 60439-1
• Certifications: II 2(1) GD Ex d [ia] IIB Ex tD A21 T5/T6 IP 65/66/67 || II 2GD Ex d IIB+H2 T6,T5, T4 Gb Ex tb IIIC T85°C, T100°C, T135°C Db || IP66/67 || II 2(1) GD Ex d [ia Ga] IIB+H2 T6, T5 Gb Ex tb [ia Da] IIIC T85°C, T100°C Db IP66/67 || CESI 00 ATEX 036U (Component) || CESI 01 ATEX 026 (Terminal box) || CESI 01 ATEX 027 (Control, command and signaling units) || CESI 02 ATEX 073 (Interface units) || CESI 03 ATEX 015 (Unit with dischargers) || IECEx TSA 06.0011 - GOST R - BRAZILIAN || GOST-R, INMETRO, Australia certifications available || Ambient Temperature: -50 C to +60C
