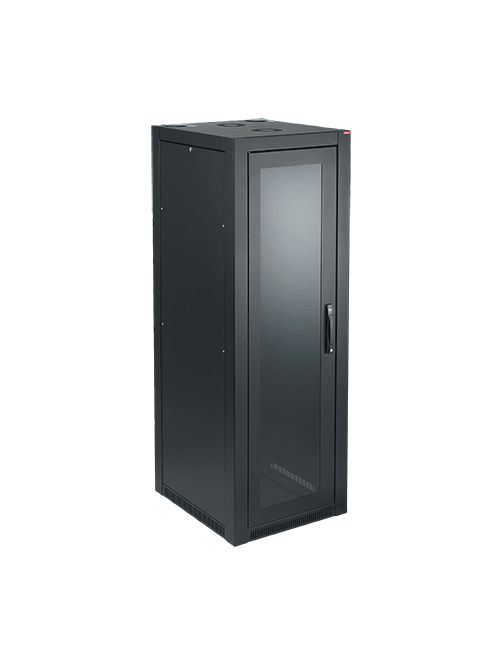

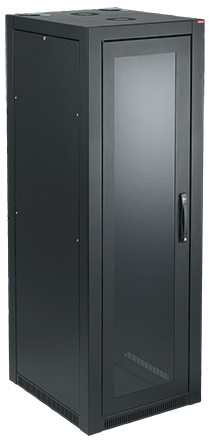

NVENT HOF ENC2189S Seismic Network

Features

• ENC2189S can be configured for 19- or 23-in. rack mounting by reversing the rack angles
• Both front and rear doors are hinged left and equipped with keylock flush handle and 3-point latching
• Same key provides access to all doors and side panels
• Doors and side panels are removable for easier equipment installation and upgrades
• Doors and side panels inset flush with frame
• Vented, heavy gauge steel base is designed to bolt to floor with seismic-rated fasteners
• Heavy gauge welded steel frame with six rack angle mounting struts
• Includes two sets of painted L-shaped rack angles with holes per EIA spacing (5/8 in. x 5/8 in. x 1/2 in.)
• Holes are either 10-32 tapped or square, depending on model
• Top has two cable entry ports with caps and grommets and two fan-ready cutouts with finger guards
• Smoke gray acrylic window in reinforced front door
• Louvers on lower 1/3 of rear door

Accessories

• ESBDK 3/8-in. Concrete Expansion Bolt Anchor Kit, package of four
• Most 19- and 23-in. rack accessories can be used with the seismic cabinets.

Specifications

• Bulletin Number: DNCS
• Material: Steel
• Model Code: 11063
• Ship Wt. Std. Pkg. (lbs): 458.0
• Interchangeable: False
• Finish: Black RAL 9005
• Catalog Number: ENC2189S
• A in.: 84.02
• B in.: 31.5
• C in.: 35.43
• Rack Units: 45
• Description: 19- or 23-in. cabinet
• N in.: 20.40
• Additional Rack Angles: ERA192321TPL
• Rack Angle Hole Type: Tapped
• Standards: NEBS™-Telcordia GR-63-CORE Zone 4: Tested with 1000 lb. (453.6 kg) of equipment installed and 100 lb. (45.4 kg) of simulated cable weight on the top. EIA 310-D || OSHPD Pre-Approval OPM-0200-13 || ||
