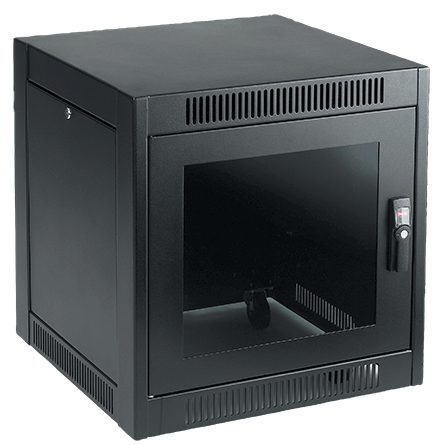

Hoffman ENC766SH 19 Inch Black Steel SOHO Network Cabinet
$2,212.20/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hoffman Engineering
Mfg Catalog # ENC766SH
North Coast Part # 763710

Features

  • Includes 2 sets of painted L-shaped rack angles with holes per EIA spacing (5/8 in. x 5/8 in. x 1/2 in.)
  • Solid top
  • Smoke-gray acrylic window in front door
  • Rack angles on 600-mm deep cabinet have 10-32 tapped holes, and on 900-mm deep cabinet have square holes
  • Both sizes provide 11 rack units
  • Welded steel frame with 4 rack angle mounting struts
  • Front door has locking handle
  • Doors are hinged left and removable
  • Same key provides access to all doors and side panels
  • Fan cutouts with finger guards on upper half of rear door
  • Rear door and side panels have quarter-turn key-locking latches
  • Open base with slotted vents includes casters
  • Adjustable gland plate with strain relief at bottom rear of cabinet provides easy and secure cable entry
  • Doors and side panels inset flush with frame

Accessories

  • Most 19-in. rack accessories can be used with the SOHO cabinet.

Specifications

  • Bulletin Number: DNCS
  • Material: Steel
  • Model Code: 11064
  • Ship Wt. Std. Pkg. (lbs): 100.0
  • Interchangeable: False
  • Catalog Number: ENC766SH
  • A in.: 26.21
  • B in.: 23.63
  • C in.: 23.6
  • Hole Type: Tapped
  • Rack Units: 11
  • Description: 600-mm deep cabinet
  • Additional Rack Angles: ERA197TPLN

Overview

UPC 78351011064
GTiN 00783510110642
Finish Black
Width 23.63 in
Color Black
Type Free-Stand Networking Cabinets
Material Steel
Applications Networking, Storage and Data Center
Depth 23.6 in
Height 26.21 in
Standard EIA 310-D
Family Brand Name Hoffman
Rack Unit 11
Sub Brand Hoffman
